Product Summary

The TDA2005R is class B dual audio power amplifier in MULTIWATT package specifically designed for car radio application : power booster amplifiers are easily designed using this device that provides a high current capability (up to 3.5 A) and that can drive very low impedance loads.

Parametrics

TDA2005R absolute maximum ratings: (1)Operating Supply Voltage: 18 V; (2)DC Supply Voltage: 28 V; (3)Peak Supply Voltage (for 50 ms): 40 V; (4)Output Peak Current (non repetitive t = 0.1 ms): 4.5 A; (5)Output Peak Current (repetitive f . 10 Hz): 3.5 A; (6)Power Dissipation at Tcase = 60 ℃: 30 W; (7)Storage and Junction Temperature: – 40 to 150 ℃.

Features

TDA2005R features: (1)Output dc and ac short circuit to ground; (2)Overrating chip temperature ; (3)Load dump voltage surge ; (4)Fortuitous open ground very inductive loads.

Diagrams

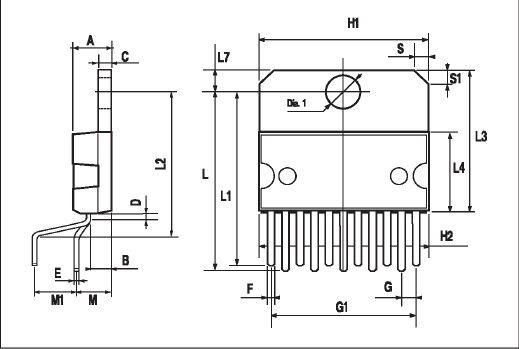

TDA2005R dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TDA2005R
TDA2005R
STMicroelectronics
Audio Amplifiers Car-Audio Amplifier Class AB Specific
Data Sheet
0-1: $2.07
1-10: $1.66
10-100: $1.51
100-250: $1.36
