Product Summary

The TDA2004R is a stereo amplifier. The TDA2004R is a class B dual audio power amplifier in Multiwatt11 package specifically designed for car radio applications. Power booster amplifiers can be easily designed using this device that provides a high current capability (up to 3.5 A) and can drive very low impedance loads (down to 1.6 Ω).

Parametrics

TDA2004R absolute maximum ratings: (1)Operating supply voltage: 18 V; (2)DC supply voltage: 28 V; (3)Peak supply voltage (50 ms): 40 V; (4)Output peak current (non repetitive t = 0.1 ms): 4.5 A; (5)Output peak current (repetitive f ≥10 Hz): 3.5 A; (6)Power dissipation at Tcase = 60 ℃: 30 W; (7)Storage and junction temperature: -40 to 150 ℃.

Features

TDA2004R features: (1)Low distortion; (2)Low noise; (3)Protection against: Output AC short circuit to ground; (4)Overrating chip temperature; (5)Load dump voltage surge; (6)Fortuitous open ground; (7)Very inductive loads.

Diagrams

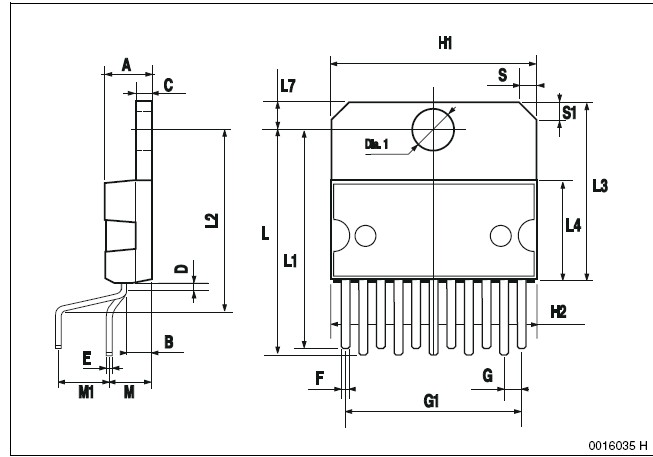

TDA2004R dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TDA2004R
TDA2004R
STMicroelectronics
Audio Amplifiers 10+10W Stereo Amp
Data Sheet
0-1: $1.76
1-10: $1.42
10-100: $1.28
100-250: $1.13
