Product Summary
The TD62783AP is a high-voltage source driver.
Parametrics
TD62783AP absolute maximum ratings: (1)Supply Voltage: 50V; (2)Output Current: - 500 mA/ch; (3)Input Voltage: 15V; (4)Clamp Diode Reverse Voltage: 50 V; (5)Clamp Diode Forward Current: 500 mA; (6)Power Dissipation: 1.47W; (7)Operating Temperature: -40 to 85 ℃; (8)Storage Temperature : - 55 to 150 ℃.
Features
TD62783AP features: (1)Output current (single output) IOUT = - 500mA MIN; (2)Output clamp diodes; (3)Single supply voltage; (4)Input compatible with various types of logic; (5)Package Type-AP : DIP-18pin; (6)Package Type-F, AF : SOP-18pin.

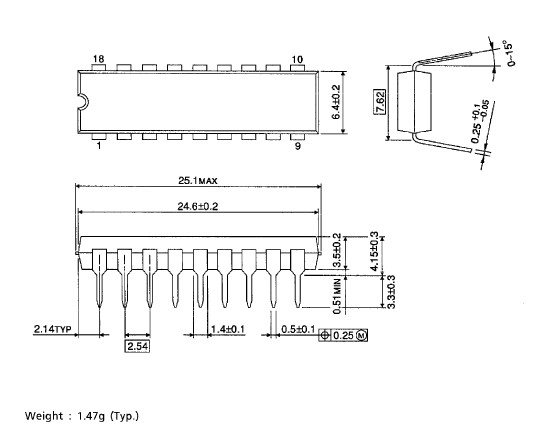

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TD62783AP |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TD62783AP(J,S) |
|
IC DRIVER DARL SOURCE 8CH 18-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
|
TD62783APG(O,J,S) |
Toshiba |
Display Drivers & Controllers 8-Ch High Volt DRVR 50V -500mA 5V CMOS |
Data Sheet |
|
|
||||||||||||
|
TD62783APG(5,J,S) |
Toshiba |
Display Drivers & Controllers 8CH. 50V/.5A IFD IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TD62783APG |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
