TC4427COA713

TC4427COA713, dual high-speed power MOSFET driver, 22 V, 730 mW, 25 ns, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.52 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.52 / Piece
1000 ~ 100000 :	0.50 / Piece
100000 ~ 1000000 :	0.45 / Piece

PartNumber:: TC4427COA713

Brand:: Microchip Technology - Microchip | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 1000000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-30

From Other Seller

Part Number:TC4427COA713
US $0.45 - 0.52
Quantity:

piece

Product Summary

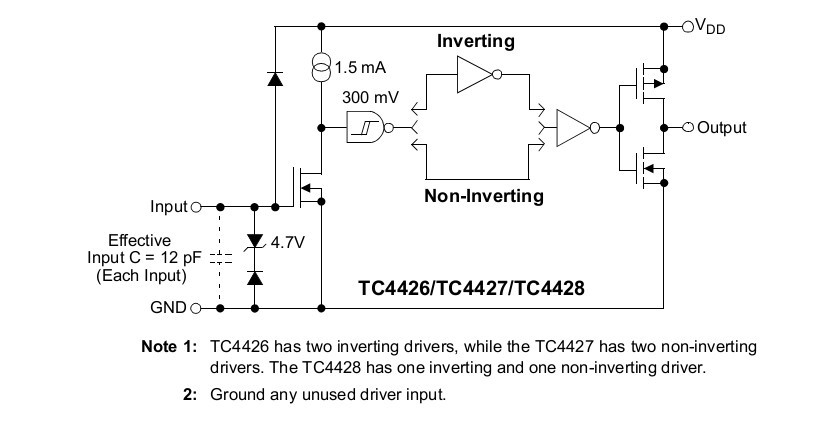

The TC4427COA713 is a dual high-speed power MOSFET driver. It is improved versions of the earlier TC426/TC427/TC428 family of MOSFET drivers. The TC4427COA713 has matched rise and fall times when charging and discharging the gate of a MOSFET. These devices are highly latch-up resistant under any conditions within their power and voltage ratings. The TC4427COA713 not subject to damage when up to 5V of noise spik-ing (of either polarity) occurs on the ground pin. They can accept, without damage or logic upset, up to 500 mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against Electrostatic Discharge (ESD) up to 4kV.

Parametrics

TC4427COA713 absolute maximum ratings: (1)Supply Voltage : +22V; (2)Input Voltage, IN A or IN B:(VDD + 0.3V) to (GND – 5V); (3)Package Power Dissipation (TA ≤ 70°C)MSOP =340 mW;PDIP : 730 mW;SOIC=470 mW; (4)Storage Temperature Range : -65°C to +150°C; (5)Maximum Junction Temperature : +150°C.

Features

TC4427COA713 features: (1)High Peak Output Current – 1.5A; (2)Wide Input Supply Voltage Operating Range:- 4.5V to 18V; (3)High Capacitive Load Drive Capability – 1000 pF in 25 ns (typ.); (4)Short Delay Times – 40 ns (typ.); (5)Matched Rise and Fall Times; (6)Low Supply Current:- With Logic ‘1’ Input – 4 mA;- With Logic ‘0’ Input – 400 μA; (7)Low Output Impedance – 7 Ω; (8)Latch-Up Protected: Will Withstand 0.5A Reverse Current; (9)Input Will Withstand Negative Inputs Up to 5V; (10)ESD Protected – 4 kV; (11)Pin-compatible with the TC426/TC427/TC428; (12)Space-saving 8-Pin MSOP and 8-Pin 6x5 DFN Packages
