Product Summary
The TC3842 is a Quartz THT.
Parametrics
TC3842 absolute maximum ratings: (1)Frequency range, f: 20kHz ~ 200kHz; (2)Frequency tolerance,Ta=25℃, △f/f: ± 20ppm to ± 50ppm; (3)Load capacitance, CL: 6pF ~ 12.5pF; (4)Temp. coefficient, A: -0,04 × 10-6 /℃2; (5)Temperature range Storage temp., TSTG: -30℃ ~ +85℃; (6)Operating temp., TOPR: -10℃ ~ +60℃; (7)Drive level Maximum drive level, MDL: 1μW; (8)Series resistance, R1: 35kOhm max; (9)Shunt capacitance, C0: 5pF; (10)Insulation resistance, IR: 500M Ohm; (11)Aging, △fA: ±5ppm/Year.
Features
TC3842 features: (1)Small size; (2)Tuning fork reliability; (3)Thru-hole package; (4)Wide frequency range.

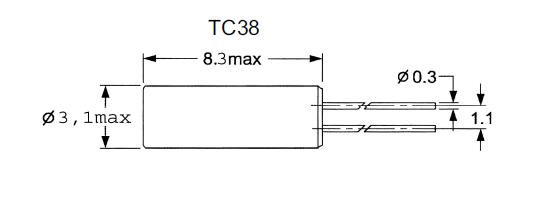

Diagrams
