Product Summary
The SW-425TR is a Cellular T/R and Antenna Changeover Switch. The SW-425TR is a GaAs monolithic switch in a low cost SOT-26 surface mount plastic package. The SW-425TR is ideally suited for applications where very low power consumption (<10μA@5V), low intermediation products and very small size are required. Typical applications include Internal/External antenna select switch for portable telephones and data radios. In addition, because of its low loss, good isolation and inherent speed, the SW-425TR can be used as a conventional T/R switch or as an antenna diversity switch. The SW-425TR can be used in power applications up to 3 watts in systems such as cellular PCS, CDMA, W-CDMA, TDMA, GSM and other analog/digital wireless communications systems.
Parametrics
SW-425TR absolute maximum ratings: (1)Power (0.5—3.0 GHz) 3 V Control: +36 dBm; (2)5 V Control: +38 dBm; (3)Operating Temperature: -40℃ to +85℃; (4)Storage Temperature: -65℃ to +150℃.
Features
SW-425TR features: (1)Low Cost Plastic SOT-26 Package; (2)Low Insertion Loss: < 0.6 dB @ 1900 MHz; (3)Low Power Consumption: <20μA @ +3V; (4)Very High Intercept Point: 53 dBm IP3; (5)Both Positive and Negative 2.5 to 8 V Control; (6)For CDMA, W-CDMA, TDMA, GSM, PCS and DCS Applications.

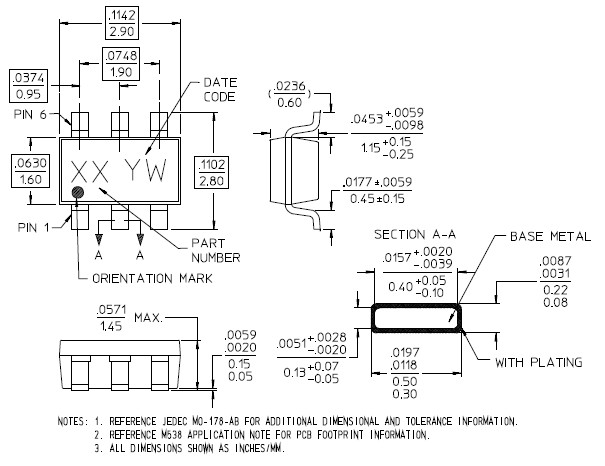

Diagrams
