Product Summary

The SW-277TR is a High Power GaAs SPDT Switch. The SW-277TR is a GaAs MMIC SPDT switch in a SOIC-8 lead surface mount plastic package. The SW-277TR is ideally suited for use where low power consumption is required. Typical applications include transmit/receive switching, switch matrices and switched filter banks in systems such as radio and cellular equipment, PCM, GPS, fiber optic modules, and other battery powered radio equipment. The SW-277TR is fabricated using a monolithic GaAs MMIC using a mature 1 micron process. The process features full chip passivation for increased performance and reliability.

Parametrics

SW-277TR absolute maximum ratings: (1)Power Dissipation: 1.0 W; (2)Supply Voltage: -1 V ≤ VDD ≤ + 12 V; (3)Control Voltage: -1 V ≤ VC ≤ VDD + 0.2 V; (4)Operating Temperature: -40℃ to +85℃; (5)Storage Temperature: -65℃ to +150℃; (6)Thermal Resistance: θjc = 87℃/W.

Features

SW-277TR features: (1)Positive Supply and Control Voltages; (2)1 dB Compression Point: +36 dBm Typical, 8 V; (3)3rd Order Intercept Point: +65 dBm Typical, 8 V; (4)Low Insertion Loss: 0.4 dB Typical; (5)Low Power Consumption: 100 μW; (6)Fast Switching Speed.

Diagrams

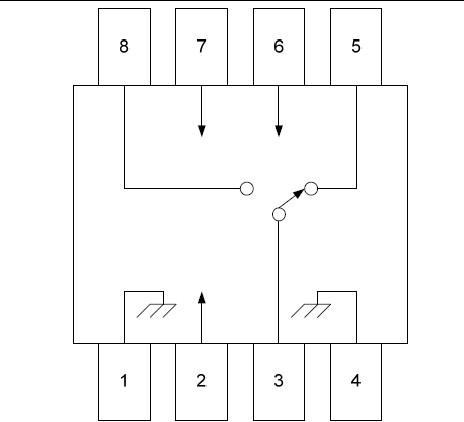

SW-277TR block diagram
