Product Summary
The STM8S207C8T6 is a performance line 8-bit microcontroller which offers from 32 to 128 Kbytes Flash program memory. It is referred to as high-density devices in the STM8S microcontroller family Reference Manual (RM0016). All devices of the STM8S207C8T6 performance line provide the following benefits: Reduced system cost, Performance and robustness, Short development cycles and Product longevity.
Parametrics
STM8S207C8T6 absolute maximum ratings: (1)Supply voltage: -0.3 to 6.5V; (2)Input voltage on true open drain pins: VSS-0.3 to 6.5V; (3)Input voltage on any other pin: VSS-0.3 to VDD+0.3V; (4)Variations between different power pins: 50mV; (5)Variations between all the different ground pins: 50mV.
Features
STM8S207C8T6 features: (1)Extended instruction set; (2)Max 20 MIPS @ 24 MHz; (3)Clock, reset and supply management; (4)Clock security system with clock monitor; (5)Power management; (6)Permanently active, low consumption power-on and power-down reset; (7)Nested interrupt controller with 32 interrupts; (8)Up to 37 external interrupts on 6 vectors; (9)10-bit ADC with up to 16 channels; (10)Single wire interface module (SWIM) and debug module (DM); (11)96-bit unique key for each device.

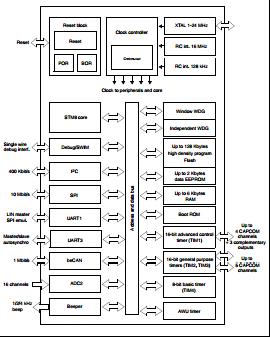

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM8S207C8T6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) 24MHz, 8-Bit MCU 20MIPS@24MHz |
Data Sheet |
|
|
||||||||||||
|
STM8S207C8T6TR |
STMicroelectronics |
8-bit Microcontrollers (MCU) 24MHz, 8-Bit MCU 20MIPS@24MHz |
Data Sheet |
|
|
||||||||||||
