Product Summary
The STM8S105C4T6 is an Analog to Digital Converter. The STM8S105C4T6 access line 8-bit microcontrollers offer from 16 to 32 Kbytes Flash program memory, plus integrated true data EEPROM. They are referred to as medium-density devices in the STM8S microcontroller family reference manual (RM0016).
Parametrics
STM8S105C4T6 absolute maximum ratings: (1)Supply voltage: -0.3 to 6.5 V; (2)Input voltage on true open drain pins: VSS - 0.3 to 6.5 V; (3)Input voltage on any other pin: VSS - 0.3 to VDD + 0.3; (4)Variations between different power pins : 50 mV.
Features
STM8S105C4T6 features: (1)16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline ; (2)Extended instruction set; (3)RAM: Up to 2 Kbytes; (4)Nested interrupt controller with 32 interrupts ; (5)Up to 37 external interrupts on 6 vectors.

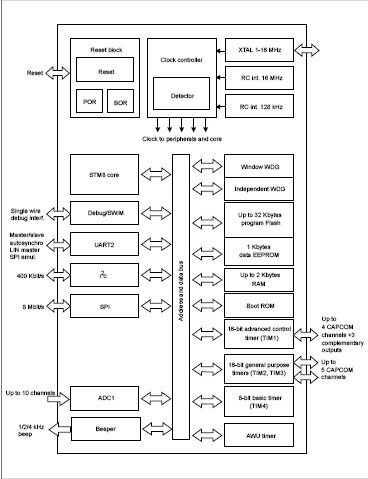

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM8S105C4T6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) Access Line 16 MHz 8-bit MCU 32 Kbyt |
Data Sheet |
|
|
||||||||||||
|
STM8S105C4T6TR |
STMicroelectronics |
8-bit Microcontrollers (MCU) Access Line 24 MHz MCU 32 Kbytes Flash |
Data Sheet |
|
|
||||||||||||
