Product Summary
The STM8S003F3P6 is a line 8-bit microcontroller which features 8 Kbytes Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual (RM0016) refers to devices in this family as low-density. They provide the following benefits: performance, robustness, and reduced system cost. Device performance and robustness are ensured by integrated true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.
Parametrics
STM8S003F3P6 absolute maximum ratings: (1)Supply voltage: -0.3 to 6.5V; (2)Input voltage on true open drain pins: VSS-0.3 to 6.5V; (3)Input voltage on any other pin: VSS-0.3 to VDD+0.3V; (4)Variations between different power pins: 50mV; (5)Variations between all the different ground pins: 50mV.
Features
STM8S003F3P6 features: (1)16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline; (2)Extended instruction set; (3)Flexible clock control, 4 master clock sources; (4)2.95 to 5.5 V operating voltage; (5)Clock security system with clock monitor; (6)Power management; (7)Permanently active, low consumption power-on and power-down reset; (8)Up to 28 I/Os on a 32-pin package including 21 high sink outputs; (9)Highly robust I/O design, immune against current injection.

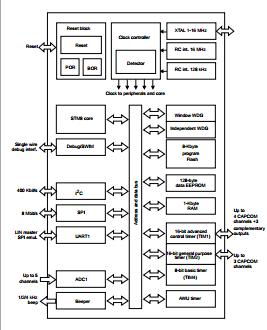

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM8S003F3P6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) 8-bit MCU Value Line 16 MHz 8kb FL 128EE |
Data Sheet |
|
|
||||||||||||
 |
STM8S003F3P6TR |
STMicroelectronics |
8-bit Microcontrollers (MCU) 8-Bit MCU Value Line 8kB Flash 16MHz EE |
Data Sheet |
|
|
||||||||||||
