Product Summary

The STM8L152C6T6 is a ultralow power MCU. It is referred to as medium-density device in the STM8L152C6T6 reference manual (RM0031) and in the STM8L Flash programming manual (PM0054). The STM8L152C6T6 Ultralow power family features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations.

Parametrics

STM8L152C6T6 absolute maximum ratings: (1)External supply voltage: -0.3 to 4.0V; (2)Input voltage on true open-drain pins: VSS-0.3 TO VDD + 4.6V; (3)Input voltage on FT pins: VSS-0.3 to VDD + 4.6V; (4)Input voltage on any other pin: VSS-0.3 to 4.6V.

Features

STM8L152C6T6 features: (1)Low power; (2)Advanced STM8 core; (3)Reset and supply management; (4)Clock management; (5)Low power RTC; (6)LCD:up to 4x28 segments w/ step-up converter; (7)12-bit DAC with output buffer; (8)Up to 41 I/Os, all mappable on interrupt vectors; (9)Up to 16 capacitive sensing channels with free firmware; (10)96-bit unique ID.

Diagrams

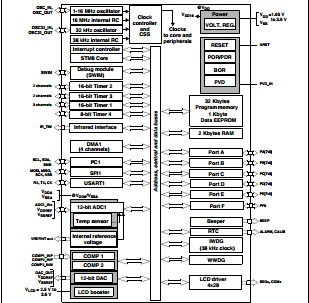

STM8L152C6T6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STM8L152C6T6
STM8L152C6T6
STMicroelectronics
8-bit Microcontrollers (MCU) 8-bit Ultralow MCU 32 KB Flash w/LCD
Data Sheet
0-1: $1.90
1-10: $1.55
10-100: $1.37
100-250: $1.24
STM8L152C6T6TR
STM8L152C6T6TR
STMicroelectronics
8-bit Microcontrollers (MCU) 8-bit Ultralow MCU LCD 48pin 32kb Flash
Data Sheet
0-1670: $1.01
1670-2000: $0.93
2000-2400: $0.93
2400-5000: $0.90
