Product Summary

The STM8L151K4T6 is a ultralow power MCU. They are referred to as medium-density devices in the STM8L151K4T6 reference manual (RM0031) and in the STM8L Flash programming manual (PM0054). The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools.

Parametrics

STM8L151K4T6 absolute maximum ratings: (1)External supply voltage: -0.3 to 4.0V; (2)Input voltage on true open-drain pins: VSS-0.3 to VDD + 4.6V; (3)Input voltage on FT pins: VSS-0.3 to VDD + 4.6V; (4)Input voltage on any other pin: VSS-0.3 to 4.6V.

Features

STM8L151K4T6 features: (1)Low power; (2)Advanced STM8 core; (3)Reset and supply management; (4)Clock management; (5)Low power RTC; (6)12-bit DAC with output buffer; (7)Communication interfaces; (8)2 Ultralow power comparators; (9)Up to 41 I/Os, all mappable on interrupt vectors; (10)Up to 16 capacitive sensing channels with free; (11)96-bit unique ID.

Diagrams

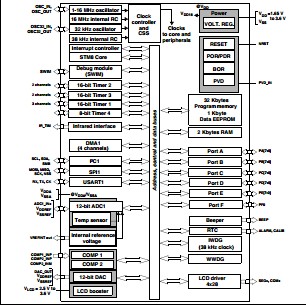

STM8L151K4T6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STM8L151K4T6
STM8L151K4T6

STMicroelectronics

8-bit Microcontrollers (MCU) 8-bit Ultralow MCU 16 KB Flash

Data Sheet

0-1: $1.57
1-10: $1.27
10-100: $1.15
100-250: $1.02
