Product Summary
The STM8L101F3P6 is an 8-bit ultralow power microcontroller. It features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations. The STM8L101F3P6 includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive In-Application debugging and ultrafast Flash programming.
Parametrics
STM8L101F3P6 absolute maximum ratings: (1)External supply voltage: -0.3 to 4.0V; (2)Input voltage on true open drain pins: VSS-0.3 to 5.25V; (3)Input voltage on any other pin: VSS-0.3 to 4.6V.
Features
STM8L101F3P6 features: (1)Supply voltage range 1.65 V to 3.6 V; (2)Low power consumption; (3)STM8 Core with up to 16 CISC MIPS throughput; (4)Temp. range: -40 to 85℃ and 125℃; (5)96-bit unique ID; (6)Nested interrupt controller with software priority control; (7)Up to 29 external interrupt sources.

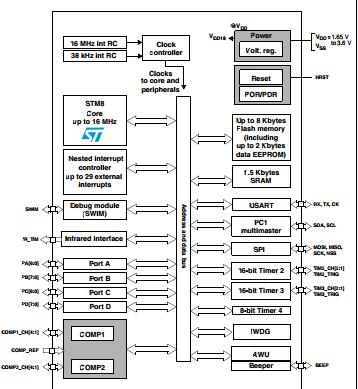

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM8L101F3P6 |
STMicroelectronics |
8-bit Microcontrollers (MCU) 8-Bit UL PWR MCU 8Kbytes -40 to 85 |
Data Sheet |
|
|
||||||||||||
