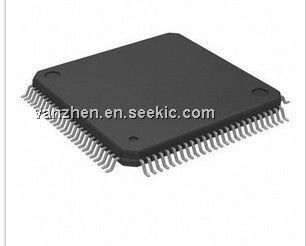

Product Summary
The STM32F417IGT6 is based on the high-performance ARM Cortex-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The STM32F417IGT6 features a Floating point unit (FPU) single precision which supports all ARM singleprecision data-processing instructions and data types. The STM32F417IGT6 also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The STM32F417IGT6 with FPU will be referred to as Cortex-M4F throughout this document.
Parametrics
STM32F417IGT6 absolute maximum ratings: (1)VDD–VSS External main supply voltage (including VDDA, VDD: –0.3 to 4.0 V; (2)Input voltage on five-volt tolerant pin VSS: –0.3 to 4.0V; (3)TSTG Storage temperature range: –65 to +150 °C; (4)TJ Maximum junction temperature: 125 °C; (5)IVDD Total current into VDD power lines (source): 150mA.
Features
STM32F417IGT6 features: (1)Up to 1 Mbyte of Flash memory; (2)Up to 192+4 Kbytes of SRAM including 64- Kbyte of CCM (core coupled memory)data RAM; (3)Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories; (4)1.8 V to 3.6 V application supply and I/Os; (5)POR, PDR, PVD and BOR; (6)4-to-26 MHz crystal oscillator; (7)Internal 16 MHz factory-trimmed RC (1% accuracy); (8)32 kHz oscillator for RTC with calibration; (9)Internal 32 kHz RC with calibration; (10)3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode; (11)2×12-bit D/A converters; (12)General-purpose DMA: 16-stream DMA controller with FIFOs and burst support; (13)Up to 17 timers: up to twelve 16-bit and two 32- bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental)encoder input.

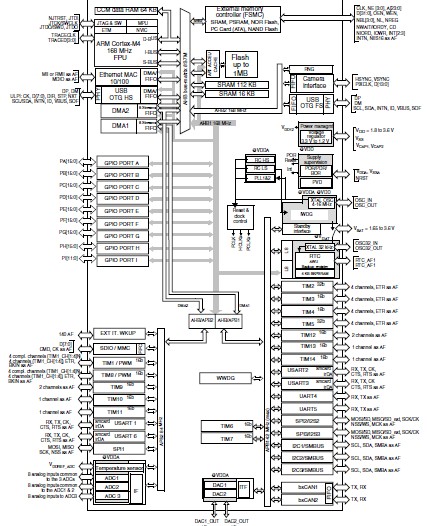

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F417IGT6 |
STMicroelectronics |
ARM Microcontrollers (MCU) ARM M4 1024 FLASH 168 Mhz 192kB SRAM |
Data Sheet |
|
|
||||||||||||
