Product Summary
The STM32F207ZET6 is an Analog to Digital Converter. The STM32F207ZET6 is based on the high-performance ARM CortexM3 32-bit RISC core operating at a frequency of up to 120 MHz. The family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 128 Kbytes of system SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix. The devices also feature an adaptive real-time memory accelerator (ART Accelerator) which allows to achieve a performance equivalent to 0 wait state program execution from Flash memory at a CPU frequency up to 120 MHz. This performance has been validated using the CoreMark benchmark.
Parametrics
STM32F207ZET6 absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD): -0.3 to 4.0 V; (2)Input voltage on five volt tolerant pin: VSS-0.3 to +4 V; (3)Variations between different VDD power pins: 50 mV; (4)Total current into VDD/VDDA power lines (source): 120 mA; (5)Output current sunk by any I/O and control pin: 25 mA.
Features
STM32F207ZET6 features: (1)3 × 12-bit, 0.5 μs ADCs with up to 24 channels and up to 6 MSPS in triple interleaved mode; (2)2 × 12-bit D/A converters; (3)General-purpose DMA: 16-stream controller with centralized FIFOs and burst support; (4)96-bit unique ID.

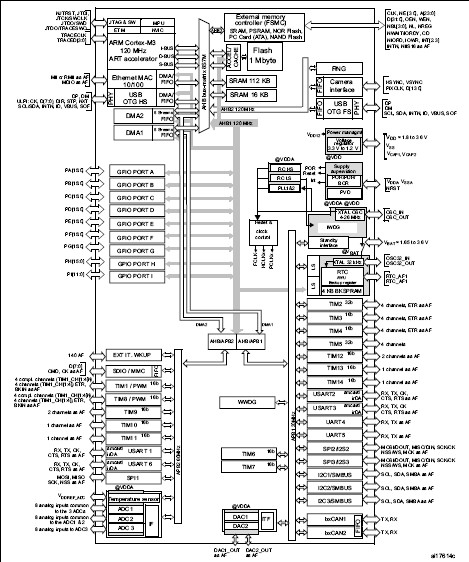

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F207ZET6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT ARM Cortex M3 Connectivity 512kB |
Data Sheet |
|
|
||||||||||||
 |
STM32F207ZET6TR |
STMicroelectronics |
ARM Microcontrollers (MCU) ARM Cortex M3 512kB 150DMIPs USB 17 Tim |
Data Sheet |
|
|
||||||||||||
