Product Summary

The STM32F207VGT6 is an Analog to Digital Converter. The STM32F207VGT6 is based on the high-performance ARM® Cortex™-M3 32-bit RISC core operating at a frequency of up to 120 MHz. The family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 128 Kbytes of system SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix. The devices also feature an adaptive real-time memory accelerator (ART Accelerator™) which allows to achieve a performance equivalent to 0 wait state program execution from Flash memory at a CPU frequency up to 120 MHz. This performance has been validated using the CoreMark benchmark.

Parametrics

STM32F207VGT6 absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD): -0.3 to 4.0 V; (2)Input voltage on five volt tolerant pin: VSS-0.3 to +4 V; (3)Variations between different VDD power pins: 50 mV; (4)Total current into VDD/VDDA power lines (source): 120 mA; (5)Output current sunk by any I/O and control pin: 25 mA.

Features

STM32F207VGT6 features: (1)3 × 12-bit, 0.5 μs ADCs with up to 24 channels and up to 6 MSPS in triple interleaved mode; (2)2 × 12-bit D/A converters; (3)General-purpose DMA: 16-stream controller with centralized FIFOs and burst support; (4)96-bit unique ID.

Diagrams

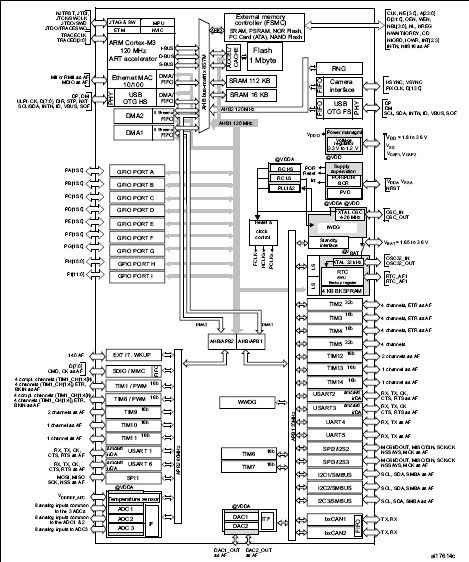

STM32F207VGT6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STM32F207VGT6
STM32F207VGT6
STMicroelectronics
ARM Microcontrollers (MCU) 32BIT ARM Cortex M3 Connectivity 1024kB
Data Sheet
0-1: $8.73
1-10: $7.39
10-100: $6.74
100-250: $6.14
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STM300
STM300

MODULE SOC RF TXRX W/8051 MCU
Data Sheet
0-1: $18.38
1-10: $17.13
10-25: $15.88
25-100: $15.40
STM300C
STM300C

MODULE SOC RF TXRX W/8051 MCU
Data Sheet
0-1: $18.38
1-10: $17.13
10-25: $15.88
25-100: $15.40
STM320518-EVAL
STM320518-EVAL
STMicroelectronics
Development Boards & Kits - ARM STM32F0 Eval Board 32-Bit ARM Cortex M0
Data Sheet
0-1: $119.40
STM32100B-EVAL
STM32100B-EVAL
STMicroelectronics
Development Boards & Kits - ARM STM32 ARM Value Line Eval Board
Data Sheet
0-1: $141.00
STM32100B-MCKIT
STM32100B-MCKIT
STMicroelectronics
Development Boards & Kits - ARM Motor Control Kit STM32F100 128KB JTAG
Data Sheet
0-1: $824.25
STM32100E-EVAL
STM32100E-EVAL
STMicroelectronics
Development Boards & Kits - ARM STM32F100 MCU EVAL STLINK/V2 Complete
Data Sheet
0-1: $171.75
