Product Summary

The STM32F105RCT6 is an Analog to Digital Converter. The STM32F105RCT6 incorporates the highperformance ARM® Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, highspeed embedded memories (Flash memory up to 256 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, four general-purpose 16-bit timers plus a PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, five USARTs, an USB OTG FS and two CANs. Ethernet is available on the STM32F105RCT6 only. The STM32F105RCT6 operates in the –40 to +105℃ temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications. The STM32F105RCT6 offers devices in two different package types: from 64 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.

Parametrics

STM32F105RCT6 absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD): -0.3 to 4.0 V; (2)Input voltage on five volt tolerant pin: VSS-0.3 to +5.5 V; (3)Variations between different VDD power pins: 50 mV; (4)Total current into VDD/VDDA power lines (source): 150 mA; (5)Output current sunk by any I/O and control pin: 25 mA.

Features

STM32F105RCT6 features: (1)72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory access; (2)Single-cycle multiplication and hardware division; (3)64 to 256 Kbytes of Flash memory; (4)up to 64 Kbytes of general-purpose SRAM; (5)2.0 to 3.6 V application supply and I/Os; (6)POR, PDR, and programmable voltage detector (PVD); (7)3-to-25 MHz crystal oscillator; (8)Internal 8 MHz factory-trimmed RC; (9)Internal 40 kHz RC with calibration; (10)32 kHz oscillator for RTC with calibration; (11)Sleep, Stop and Standby modes; (12)VBAT supply for RTC and backup registers; (13)Conversion range: 0 to 3.6 V; (14)Sample and hold capability; (15)Temperature sensor; (16)up to 2 MSPS in interleaved mode.

Diagrams

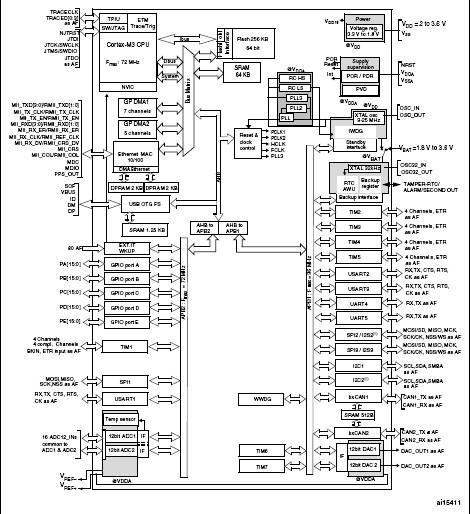

STM32F105RCT6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STM32F105RCT6
STM32F105RCT6

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT Cortex 64/25 CONNECTIVITY LINE M3

Data Sheet

0-1: $5.16
1-10: $4.58
10-100: $3.75
100-250: $3.50
STM32F105RCT6TR
STM32F105RCT6TR

STMicroelectronics

ARM Microcontrollers (MCU) 32-Bit ARM Cortex 256kb Connectivity

Data Sheet

0-651: $3.17
651-1000: $2.75
1000-2000: $2.68
