The STM32F103RDT6 is an Analog to Digital Converter. The STM32F103RDT6 incorporates the high-performance M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN. The applications of the STM32F103RDT6 include Motor drive and application control, Medical and handheld equipment, PC peripherals gaming and GPS platforms, Industrial applications, PLC, inverters, printers, and scanners and Alarm systems, video intercom, and HVAC.
Parametrics
STM32F103RDT6 absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD): -0.3 to 4.0 V; (2)Input voltage on five volt tolerant pin: VSS-0.3 to +5.5 V; (3)Variations between different VDD power pins: 50 mV; (4)Total current into VDD/VDDA power lines (source): 150 mA; (5)Output current sunk by any I/O and control pin: 25 mA.
Features
STM32F103RDT6 features: (1)256 to 512 Kbytes of Flash memory; (2)up to 64 Kbytes of SRAM; (3)Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories; (4)LCD parallel interface, 8080/6800 modes; (5)2.0 to 3.6 V application supply and I/Os; (6)POR, PDR, and programmable voltage detector (PVD); (7)4-to-16 MHz crystal oscillator; (8)Internal 8 MHz factory-trimmed RC; (9)Internal 40 kHz RC with calibration; (10)32 kHz oscillator for RTC with calibration; (11)Sleep, Stop and Standby modes; (12)VBAT supply for RTC and backup registers.

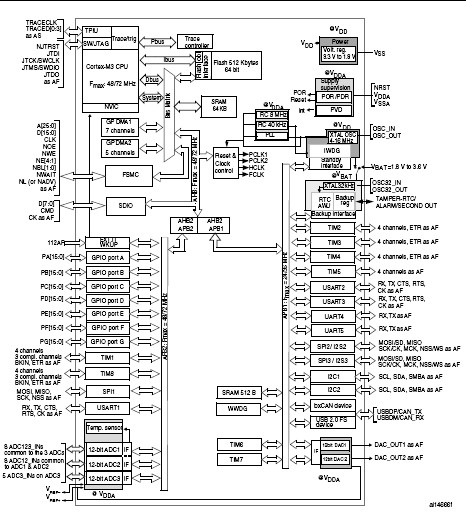

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F103RDT6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 H/D 257 to 512 USB/CAN |
Data Sheet |
|
|
||||||||||
|
STM32F103RDT6TR |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 USB CAN 11 TMRS 3 ADCS |
Data Sheet |
|
|
||||||||||
