Product Summary
The STM32F103C8T6R is a Performance line ARM. The STM32F103C8T6R incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103C8T6R offers two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN. The applications of the STM32F103C8T6R include Motor drive and application control, Medical and handheld equipment, PC peripherals gaming and GPS platforms, Industrial applications: PLC, inverters, printers, and scanners, Alarm systems, Video intercom, and HVAC.
Parametrics
STM32F103C8T6R absolute maximum ratings: (1)VDD–VSS, External 3.3 V supply voltage: –0.3 to 4.0 V; (2)VIN, Input voltage on five volt tolerant pin: VSS-0.3 to +5.5 V; (3)VIN, Input voltage on any other pin: VSS-0.3 to VDD+0.3 V; (4)|VDDx|, Variations between different power pins: 50 mV; (5)|VSSX-VSS|, Variations between all the different ground pins: 50 mV.
Features
STM32F103C8T6R features: (1)Core: ARM 32-bit Cortex-M3 CPU; (2)Memories; (3)Clock, reset and supply management; (4)Low power; (5)2 × 12-bit, 1 μs A/D converters (16-channel); (6)DMA: 7-channel DMA controller; (7)Debug mode; (8)Up to 80 fast I/O ports; (9)Up to 7 timers; (10)Up to 9 communication interfaces.

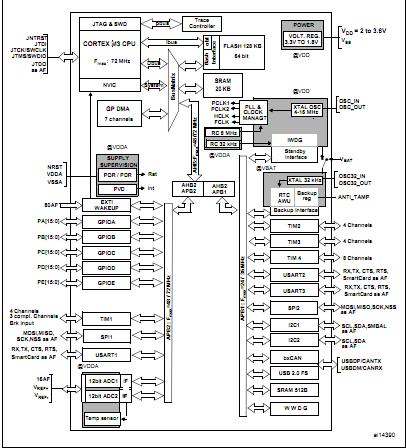

Diagrams
