STM32F100VCT6B

Product Summary

The STM32F100VCT6B is a Low & medium-density value line, advanced ARM-based 32-bit MCU with 16 to 128 KB Flash, 12 timers, ADC, DAC & 8 comm interfaces. The STM32F100VCT6B incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 24 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 8 Kbytes), and an extensive range of enhanced peripherals and I/Os connected to two APB buses. The STM32F100VCT6B offers standard communication interfaces (up to two I2Cs, two SPIs, one HDMI CEC, and up to three USARTs), one 12-bit ADC, two 12-bit DACs, up to six general-purpose 16-bit timers and an advanced-control PWM timer.

Parametrics

STM32F100VCT6B absolute maximum ratings: (1)VDD- VSS External main supply voltage (including VDDA and VDD): -0.3 to 4V; (2)VIN Input voltage on five volt tolerant pin: VSS-0.3 to 5.5V; (3)Input voltage on any other pin: VSS-0.3 to VDD+0.3V; (4)Variations between different VDD power pins 50mV; (5)|VSSX -VSS| Variations between all the different ground pins: 50mV.

Features

STM32F100VCT6B features: (1)16 to 128 Kbytes of Flash memory; (2)4 to 8 Kbytes of SRAM; (3)2.0 to 3.6 V application supply and I/Os; (4)POR, PDR and programmable voltage detector (PVD); (5)4-to-24 MHz crystal oscillator; (6)Internal 8 MHz factory-trimmed RC; (7)Internal 40 kHz RC; (8)PLL for CPU clock; (9)32 kHz oscillator for RTC with calibration; (10)Sleep, Stop and Standby modes; (11)VBAT supply for RTC and backup registers; (12)Up to three 16-bit timers, each with up to 4; (13)IC/OC/PWM or pulse counter; (14)16-bit, 6-channel advanced-control timer: up to 6 channels for PWM output, dead time generation and emergency stop; (15)One 16-bit timer, with 2 IC/OC, 1 OCN/PWM, dead-time generation and emergency stop; (16)Two 16-bit timers, each with IC/OC/OCN/PWM, dead-time generation and emergency stop; (17)2 watchdog timers (Independent and Window); (18)SysTick timer: 24-bit downcounter; (19)Two 16-bit basic timers to drive the DAC.

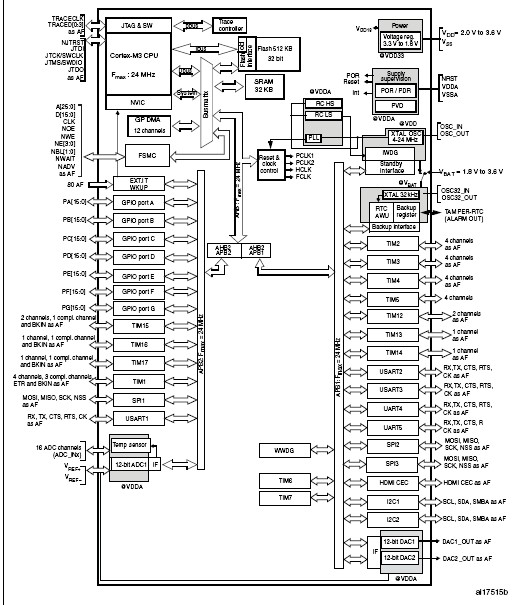

Diagrams
