ST1S10BPHR

ST1S10BPHR, monolithic synchronous step-down regulator, 20 V, 1 mA, 1.2 MHz, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.00 / Piece
501 ~ 1000 :	2.00 / Piece
1001 ~ 3000 :	1.00 / Piece

PartNumber:: ST1S10BPHR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-01

From Other Seller

Part Number:ST1S10BPHR
US $1.00 - 3.00
Quantity:

piece

Product Summary

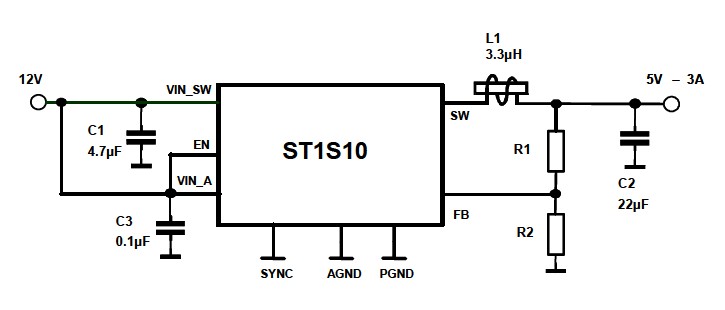

The ST1S10BPHR is a monolithic synchronous step-down regulator. The ST1S10BPHR operates with an input supply range from 2.5 V to 18 V and provides an adjustable output voltage from 0.8 V (VFB) to 0.85VIN_SW [VOUT = VFB(1+R1/R2)]. It operates either at a 900 kHz fixed frequency or can be synchronized to an external clock (from 400 kHz to 1.2 MHz). The high switching frequency allows the use of tiny SMD external components, while the integrated synchronous rectifier eliminates the need for a Schottky diode. The ST1S10BPHR provides excellent transient response, and is fully protected against thermal overheating, switching over-current and output short circuit. The ST1S10BPHR is the ideal choice for point-of-load regulators or LDO pre-regulation.

Parametrics

ST1S10BPHR absolute maximum ratings: (1)VIN_SW Positive power supply voltage: -0.3 to 20 V; (2)VIN_A Positive supply voltage: -0.3 to 20 V; (3)VINH Inhibit voltage: -0.3 to VIN_A V; (4)VSW Output switch voltage: -0.3 to 20 V; (5)VFB Feedback voltage: -0.3 to 2.5 V; (6)IFB FB current: -1 to +1 mA; (7)Sync Synchronization: -0.3 to 6 V; (8)TSTG Storage temperature range: -40 to 150 ℃; (9)TOP Operating junction temperature range: -25 to 125 ℃.

Features

ST1S10BPHR features: (1)Step-down current mode PWM regulator; (2)Output voltage adjustable from 0.8 V; (3)Input voltage from 2.5 V up to 18 V; (4)2% DC output voltage tolerance; (5)Synchronous rectification; (6)Inhibit function; (7)Synchronizable switching frequency from 400 kHz up to 1.2 MHz; (8)Internal soft start; (9)Dynamic short circuit protection; (10)Typical efficiency: 90%; (11)3 A output current capability; (12)Stand-by supply current: max 6 μA over temperature range; (13)Operative junction temp: from -25℃ to 125℃.
