Product Summary
The ST16C550CQ48-F is an universal asynchronous receiver and transmitter with 16 byte transmit and receive FIFO. It operates at 2.97 to 5.5 volts. A programmable baud rate generator can select transmit and receive clock rates from 50 bps to 1.5 Mbps. The ST16C550CQ48-F is an improved version of the UART with higher operating speed and lower access time.
Parametrics
ST16C550CQ48-F absolute maximum ratings: (1)Supply range: 7 Volts; (2)Voltage at any pin GND: -0.3 V to VCC +0.3 V; (3)Operating temperature: -40℃ to +85℃; (4)Storage temperature: -65℃ to 150℃; (5)Package dissipation: 500 mW.
Features
ST16C550CQ48-F features: (1)Pin to pin and functionally compatible to the Industry Standard 16C550; (2)2.97 to 5.5 volt operation; (3)24MHz clock operation at 5V; (4)16MHz clock operation at 3.3V; (5)16 byte transmit FIFO; (6)16 byte receive FIFO with error flags; (7)Full duplex operation; (8)Transmit and receive control; (9)Four selectable receive FIFO interrupt trigger levels; (10)Standard modem interface; (11)Compatible with ST16C450; (12)Low operating current ( 1.2mA typ.).

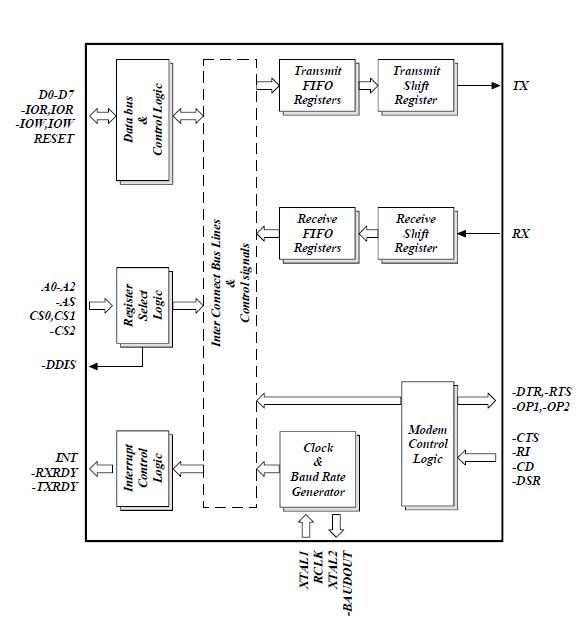

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() ST16C550CQ48-F |
![]() Exar |
![]() UART Interface IC 2.97V-5.5V 16B FIFO temp 0C to 70C; UART |
![]() Data Sheet |
![]()
|
|
||||||||||||
