ST16C2550CJ44-F

ST16C2550CJ44-F, Dual UART, PLCC, 7V, 500mW, Exar Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $35.00~40.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	40.00 / Piece
501 ~ 1000 :	38.00 / Piece
1001 ~ 3000 :	35.00 / Piece

PartNumber:: ST16C2550CJ44-F

Brand:: Exar Corporation - EXAR | Pack: PLCC | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:ST16C2550CJ44-F
US $35.00 - 40.00
Quantity:

piece

Product Summary

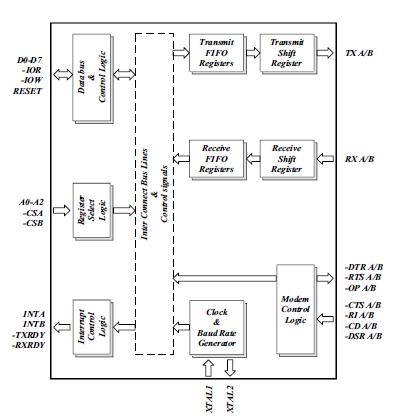

The ST16C2550CJ44-F is a dual universal asynchronous receiver and transmitter (UART). The ST16C2550CJ44-F is an improved version of the NS16C550 UART with higher operating speed and lower access time. The ST16C2550CJ44-F provides enhanced UART functions with 16 byte FIFO.s, a modem control interface, and data rates up to 1.5Mbps. Onboard status registers provide the user with error indications and operational status. System interrupts and modem control features may be tailored by external software to meet specific user requirements.

Parametrics

ST16C2550CJ44-F absolute maximum ratings: (1)Supply range: 7 Volts; (2)Voltage at any pin GND: -0.3 V to VCC +0.3 V; (3)Operating temperature: -40℃ to +85℃; (4)Storage temperature: -65℃ to 150℃; (5)Package dissipation: 500 mW.

Features

ST16C2550CJ44-F features: (1)Pin and functionally compatible to ST16C2450/Software compatible with INS8250, NS16C550; (2)1.5Mbps transmit/receive operation (24MHz Max.); (3)16 byte transmit FIFO to reduce the bandwidth requirement of the external CPU.; (4)16 byte receive FIFO with error flags to reduce the bandwidth requirement of the external CPU.; (5)Independent transmit and receive UART control; (6)Four selectable Receive FIFO interrupt trigger levels; (7)Modem control signals (-CTS, -RTS, -DSR, -DTR, -RI, -CD, and Software controllable line break); (8)Programmable character lengths (5, 6, 7, 8) with Even, odd, or no parity; (9)Status report register; (10)Crystal or external clock input; (11)460.8 Kbps transmit/receive operation with 7.3728MHz crystal or external clock source; (12)TTL compatible inputs, outputs.
