Product Summary
The SPX3819M5 is a positive voltage regulator with a low dropout voltage and low noise output. In addition, this device offers a very low ground current of 800μA at 100mA output. The SPX3819M5 has an initial tolerance of less than 1% max and a logic compatible ON/OFF switched input. When disabled, power consumption drops to nearly zero. Other key features include reverse battery protection, current limit, and thermal shutdown. The SPX3819M5 includes a reference bypass pin for optimal low noise output performance. The applications of the SPX3819M5 include Battery Powered Systems, Cordless Phones, Radio Control Systems, Portable/Palm Top/Notebook Computers, Portable Consumer Equipment, Portable Instrumentation, Bar Code Scanners, SMPS Post Regulators.
Parametrics
SPX3819M5 absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Lead Temp. (Soldering, 5 Seconds): 260℃; (3)Operating Junction Temperature Range: -40℃ to +125℃; (4)Input Supply Voltage: -20V to +20V; (5)Enable Input Voltage: -20V to +20V.
Features
SPX3819M5 features: (1)Low Noise: 40μV Possible; (2)High Accuracy: 1%; (3)Reverse Battery Protection; (4)Low Dropout: 340mV at Full Load; (5)Low Quiescent Current: 90μA; (6)Zero Off-Mode Current; (7)Fixed Output: 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 5.0V. Adj. Output also available; (8)Available in RoHS Compliant, Lead Free Packages: 5 Pin SOT-23, 8 Pin Narrow SOIC and 8 pin 2X3 DFN.

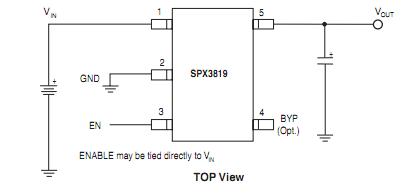

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SPX3819M5-L |
Exar |
Low Dropout (LDO) Regulators 2.5V-16V 500mA |
Data Sheet |
|
|
||||||||||||
|
SPX3819M5-L/TR |
Exar |
Low Dropout (LDO) Regulators 500mA LOW NOISE LDO |
Data Sheet |
|
|
||||||||||||
|
SPX3819M5-L-1-2 |
Exar |
Low Dropout (LDO) Regulators 500mA Low Noise LDO Voltage Regulator |
Data Sheet |
|
|
||||||||||||
|
SPX3819M5-L-1-5 |
Exar |
Low Dropout (LDO) Regulators 500mA Low Noise LDO Voltage Regulator |
Data Sheet |
|
|
||||||||||||
|
SPX3819M5-L-1-2/TR |
Exar |
Low Dropout (LDO) Regulators 500mA LOW NOISE LDO |
Data Sheet |
|
|
||||||||||||
|
SPX3819M5-L-1-5/TR |
Exar |
Low Dropout (LDO) Regulators 500mA LOW NOISE LDO |
Data Sheet |
|
|
||||||||||||
|
SPX3819M5-L-3-3/TR |
Exar |
Low Dropout (LDO) Regulators 500mA LOW NOISE LDO |
Data Sheet |
|
|
||||||||||||
|
SPX3819M5-L-3-0 |
Exar |
Low Dropout (LDO) Regulators 500mA Low Noise LDO Voltage Regulator |
Data Sheet |
|
|
||||||||||||
