SN74LVT244BPW

Product Summary

The SN74LVT244BPW is an octal buffer/line driver. It is designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. The SN74LVT244BPW is organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.

Parametrics

SN74LVT244BPW absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 4.6 V; (2)Input voltage range, VI (see Note 1): –0.5 V to 7 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO (see Note 1): –0.5 V to 7 V; (4)Voltage range applied to any output in the high state, VO (see Note 1): –0.5 V to VCC + 0.5 V; (5)Current into any output in the low state, IO: SN54LVT244B: 96 mA; (6)SN74LVT244B 128 mA; (7)Current into any output in the high state, IO (see Note 2): SN54LVT244B: 48 mA; (8)Current into any output in the high state, IO (see Note 2): SN74LVT244B: 64 mA; (9)Input clamp current, IIK (VI < 0): –50 mA; (10)Output clamp current, IOK (VO < 0): –50 mA; (11)Package thermal impedance, qJA (see Note 3): DB package: 70°C/W; (12)Package thermal impedance, qJA (see Note 3): DW package: 58°C/W; (13)Package thermal impedance, qJA (see Note 3): PW package: 83°C/W; (14)Storage temperature range, Tstg: –65°C to 150°C.

Features

SN74LVT244BPW features: (1)State-of-the-Art Advanced BiCMOS Technology (ABT)Design for 3.3-V Operation and Low Static-Power Dissipation; (2)High-Impedance State During Power Up and Power Down; (3)Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC); (4)Support Unregulated Battery Operation Down to 2.7 V; (5)Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°C; (6)Ioff and Power-Up 3-State Support Hot Insertion; (7)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (8)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101).

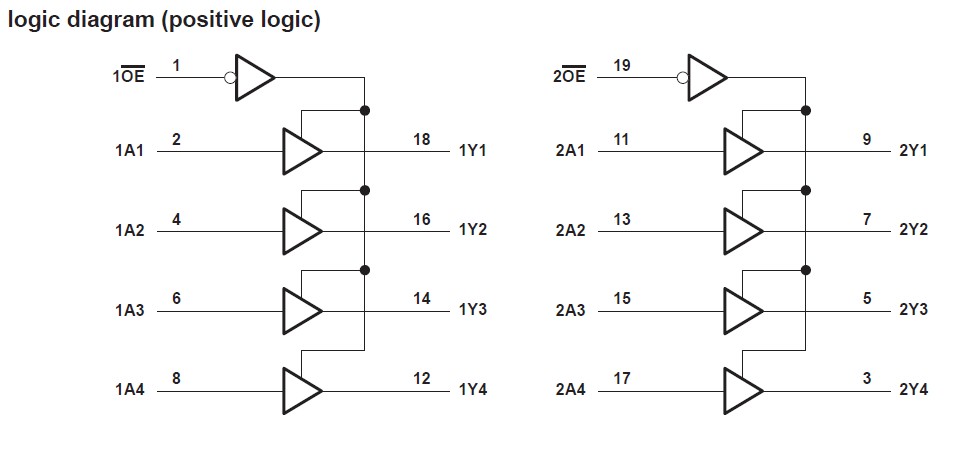

Diagrams
