SN74LVC1G125DCKR

single bus buffer, SN74LVC1G125DCKR, –0.5 to 6.5 V, –50 mA, SC-70-5

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: SN74LVC1G125DCKR

Brand:: Texas Instruments - TI | Pack: SC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:SN74LVC1G125DCKR
US $0.30 - 0.50
SN74LVC1G125DCKR IC BUS BUFF TRI-ST N-INV SC705 Buffer/Line Driver, N

US $0.08 - 0.12 / Piece
(0) Remove
Quantity:

piece

Product Summary

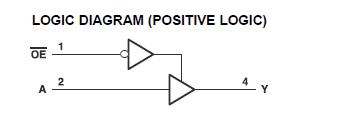

The SN74LVC1G125DCKR is a single bus buffer GATE with 3-state output. It is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G125DCKR is a single line driver with a 3-state output. The output is disabled when the output-enable (OE) input is high.

Parametrics

SN74LVC1G125DCKR absolute maximum ratings: (1)VCC Supply voltage range: –0.5 to 6.5 V; (2)VI Input voltage range: –0.5 to 6.5 V; (3)VO Voltage range applied to any output in the high-impedance or power-off state: –0.5 to 6.5 V; (4)VO Voltage range applied to any output in the high or low state: –0.5 to VCC + 0.5 V; (5)IIK Input clamp current VI < 0: –50 mA; (6)IOK Output clamp current VO < 0: –50 mA; (7)IO Continuous output current: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)θJA Package thermal impedance DBV package: 206℃/W; (10)θJA Package thermal impedance DCK package: 252℃/W; (11)θJA Package thermal impedance DRL package: 142℃/W; (12)θJA Package thermal impedance DRY package: 234℃/W; (13)θJA Package thermal impedance YZP package: 132℃/W; (14)Tstg Storage temperature range: –65℃ to 150℃.

Features

SN74LVC1G125DCKR features: (1)Available in the Texas Instruments NanoStar and NanoFree Packages; (2)Ioff Supports Partial-Power-Down Mode Operation; (3)Supports 5-V VCC Operation; (4)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (5)Inputs Accept Voltages to 5.5 V; (6)Max tpd of 3.7 ns at 3.3 V; (7)ESD Protection Exceeds JESD 22; (8)Low Power Consumption, 10-μA Max ICC; (9)±24-mA Output Drive at 3.3 V.
