Product Summary

The SN74LVC125APWR is a quadruple bus buffer gate. The SN74LVC125APWR is designed for 1.65-V to 3.6-V VCC operation. The SN74LVC125APWR features independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable (OE) input is high.

Parametrics

SN74LVC125APWR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 6.5 V; (2)Input voltage range, VI (see Note 1): -0.5 V to 6.5 V; (3)Output voltage range, VO (see Notes 1 and 2): -0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): -50mA; (5)Output clamp current, IOK (VO < 0): -50mA; (6)Continuous output current, IO:±50mA; (7)Continuous current through VCC or GND: ±100mA; (8)Package thermal impedance, θJA: 86℃/W; (9)Storage temperature range, Tstg: -65℃ to 150℃; (10)Power dissipation, Ptot (TA = -40℃ to 125℃) (see Notes 5 and 6): 500mW.

Features

SN74LVC125APWR features: (1)Operates From 1.65 V to 3.6 V; (2)Specified From -40℃ to 85℃ and -40℃ to 125℃; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 4.8 ns at 3.3V; (5)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (6)Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25℃; (7)Latch-Up Performance Exceeds 250mA Per JESD 17; (8)ESD Protection Exceeds JESD 22.

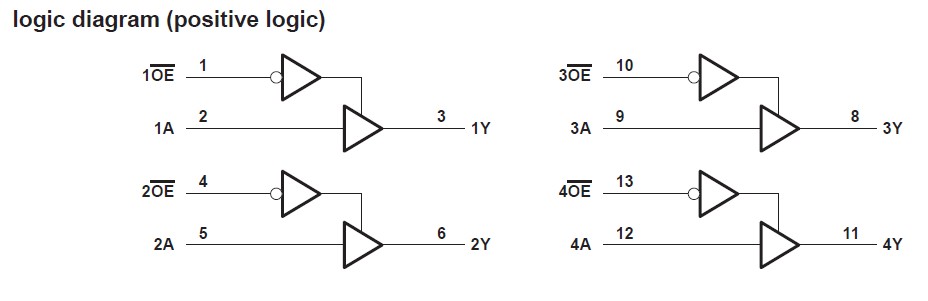

Diagrams

SN74LVC125APWR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LVC125APWR
SN74LVC125APWR

Texas Instruments

Buffers & Line Drivers Tri-State Quad Bus

Data Sheet

0-1: $0.11
1-25: $0.08
25-100: $0.05
100-250: $0.05
SN74LVC125APWRE4
SN74LVC125APWRE4

Texas Instruments

Buffers & Line Drivers Quad Bus Buffer Gate With 3-State Outputs

Data Sheet

0-1: $0.20
1-25: $0.15
25-100: $0.13
100-250: $0.11
SN74LVC125APWRG4
SN74LVC125APWRG4

Texas Instruments

Buffers & Line Drivers Quad Bus Buffer Gate With 3-State Outputs

Data Sheet

0-1: $0.28
1-25: $0.20
25-100: $0.16
100-250: $0.11
SN74LVC125APWRG3
SN74LVC125APWRG3

Texas Instruments

Buffers & Line Drivers Quad Bus Buffer Gate

Data Sheet

0-1: $0.19
1-25: $0.14
25-100: $0.12
100-250: $0.11
