SN74ALVTH162245GR

SN74ALVTH162245GR, 16-bit (dual-octal) noninverting 3-state transceiver, 4.6 V, 100 mA, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.00 / Piece
501 ~ 1000 :	2.00 / Piece
1001 ~ 3000 :	1.00 / Piece

PartNumber:: SN74ALVTH162245GR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-01

From Other Seller

Part Number:SN74ALVTH162245GR
US $1.00 - 3.00
Quantity:

piece

Product Summary

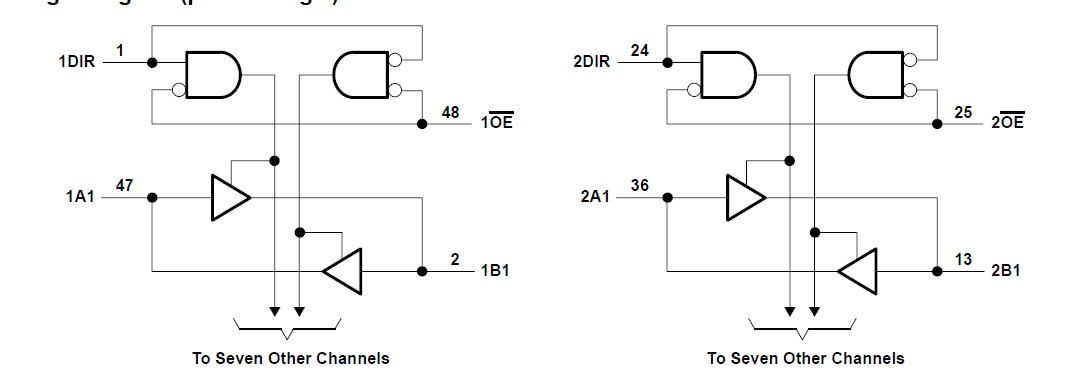

The SN74ALVTH162245GR is a 16-bit (dual-octal) noninverting 3-state transceiver designed for 2.5-V or 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. The SN74ALVTH162245GR can be used as two 8-bit transceivers or one 16-bit transceiver. The SN74ALVTH162245GR allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

Parametrics

SN74ALVTH162245GR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 4.6 V; (2)Input voltage range, VI: –0.5 V to 7 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: –0.5 V to 7 V; (4)Voltage range applied to any output in the high state, VO: –0.5 V to 7 V; (5)Output current in the low state, IO: 128 mA; (6)Output current in the high state, IO: –64 mA; (7)Continuous current through VCC or GND: ±100 mA; (8)Input clamp current, IIK (VI < 0): –50 mA; (9)Output clamp current, IOK (VO < 0): –50 mA; (10)Storage temperature range, Tstg: –65°C to 150°C.

Features

SN74ALVTH162245GR features: (1)Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 2.3-V to 3.6-V VCC); (2)Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25°C; (3)Ioff and Power-Up 3-State Support Hot Insertion; (4)Use Bus Hold on Data Inputs in Place of External Pullup/Pulldown Resistors to Prevent the Bus From Floating; (5)A-Port Outputs Have Equivalent 30-Ω Series Resistors, So No External Resistors Are Required; (6)Flow-Through Architecture Facilitates Printed Circuit Board Layout; (7)Distributed VCC and GND Pins Minimize High-Speed Switching Noise; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.
