SN74ALVCH16373DGGR

SN74ALVCH16373DGGR, octal transparent D-type latch, SOP, -0.5 V to 4.6 V, ±50 mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: SN74ALVCH16373DGGR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:SN74ALVCH16373DGGR
US $0.30 - 0.50
Quantity:

piece

Product Summary

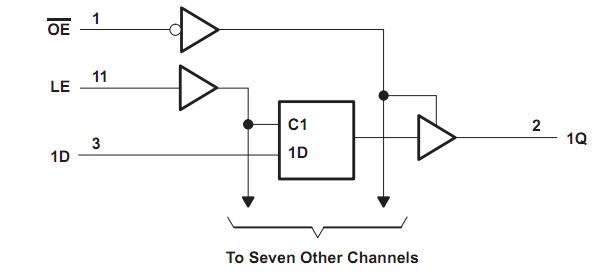

The SN74ALVCH16373DGGR is an octal transparent D-type latch designed for 1.65-V to 3.6-V VCC operation. The SN74ALVCH16373DGGR is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the logic levels set up at the D inputs. A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly.

Parametrics

SN74ALVCH16373DGGR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 4.6 V; (2)Input voltage range, VI: -0.5 V to 4.6 V; (3)Output voltage range, VO: -0.5 V to VCC + 0.5 V ; (4)Input clamp current, IIK (VI < 0): -50 mA; (5)Output clamp current, IOK (VO < 0): -50 mA; (6)Continuous output current, IO: ±50 mA; (7)Continuous current through VCC or GND: ±100 mA; (8)Package thermal impedance, θJA: DGV package 92℃/W; DW package 58℃/W; GQN/ZQN package: 78℃/W; PW package: 83℃/W; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74ALVCH16373DGGR features: (1)Operates From 1.65 V to 3.6 V; (2)Max tpd of 3.3 ns at 3.3 V; (3)±24-mA Output Drive at 3.3 V; (4)Bus Hold on Data Inputs Eliminates the; (5)Need for External Pullup/Pulldown; (6)Resistors; (7)Latch-Up Performance Exceeds 100 mA; (8)JESD 78, Class II; (9)ESD Protection Exceeds JESD 22, 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101).
