SN74AHC1G86DCKR

SN74AHC1G86DCKR, single 2-input exclusive-OR gate, 7 V, 50 mA, 8 ns, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.40 / Piece
10000 ~ 100000 :	0.30 / Piece

PartNumber:: SN74AHC1G86DCKR

Brand:: Texas Instruments - TI | Pack: SOT | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-13

From Other Seller

Part Number:SN74AHC1G86DCKR
US $0.30 - 0.50
Quantity:

piece

Product Summary

SN74AHC1G86DCKR is a single 2-input exclusive-OR gate. The SN74AHC1G86DCKR performs the Boolean function Y = A + B or Y = AB + AB in positive logic. A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.

Parametrics

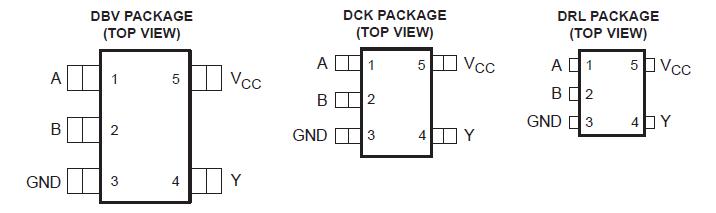

SN74AHC1G86DCKR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input voltage range, VI: 0.5 V to 7 V; (3)Output voltage range, VO: 0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): 20 mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (6)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (7)Continuous current through VCC or GND: ±50 mA; (8)Package thermal impedance, θJA DBV package: 206℃/W; (9)Package thermal impedance, θJA DCK package: 252℃/W; (10)Package thermal impedance, θJA DRL package: 142℃/W; (11)Storage temperature range, Tstg: 65℃ to 150℃.

Features

SN74AHC1G86DCKR features: (1)Operating Range of 2 V to 5.5 V; (2)Max tpd of 8 ns at 5 V; (3)Low Power Consumption, 10-μA Max ICC; (4)±8-mA Output Drive at 5 V; (5)Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time; (6)Latch-Up Performance Exceeds 250 mA Per JESD 17.
