SN65LVDS301ZQER

SN65LVDS301ZQER, Programmable 27-bit display serial interface transmitter, BGA, -0.3V, 2.175V, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: SN65LVDS301ZQER

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-24

From Other Seller

Part Number:SN65LVDS301ZQER
US $0.30 - 0.50
Quantity:

piece

Product Summary

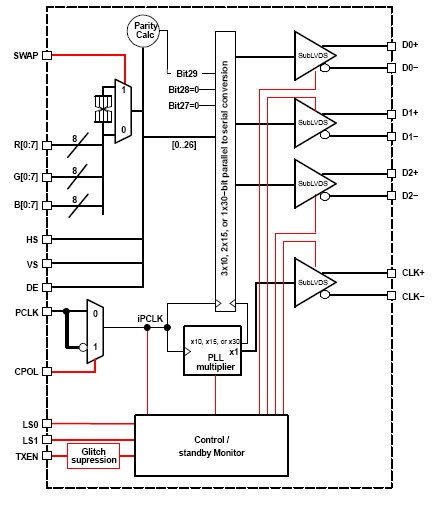

The SN65LVDS301ZQER is a Programmable 27-bit display serial interface transmitter. The SN65LVDS301ZQER serializer device converts 27 parallel data inputs to 1, 2, or 3 Sub Low-Voltage Differential Signaling (SubLVDS) serial outputs. It loads a shift register with 24 pixel bits and 3 control bits from the parallel CMOS input interface. In addition to the 27 data bits, the device adds a parity bit and two reserved bits into a 30-bit data word. Each word is latched into the device by the pixel clock (PCLK). The parity bit (odd parity) allows a receiver to detect single bit errors. The serial shift register is uploaded at 30, 15, or 10 times the pixel-clock data rate depending on the number of serial links used. A copy of the pixel clock is output on a separate differential output.

Parametrics

SN65LVDS301ZQER absolute maximum ratings: (1)Supply voltage range: -0.3 to 2.175 V; (2)Voltage range at any output terminal: -0.5 to 2.175 V; (3)Voltage range at any input terminal: -0.5 to 2.175 V; (4)Human Body Model(3) (all Pins): ±3 kV; (5)Charged-Device Mode(4)l (all Pins): ±500 V; (6)Machine Model(5) (all pins): ±200 V.
