SN65LVDS047PWR

quad differential linedriver, TSSOP, -0.3V to 4V, ±350 mV, 200MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: SN65LVDS047PWR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:SN65LVDS047PWR
US $0.30 - 0.50
Quantity:

piece

Product Summary

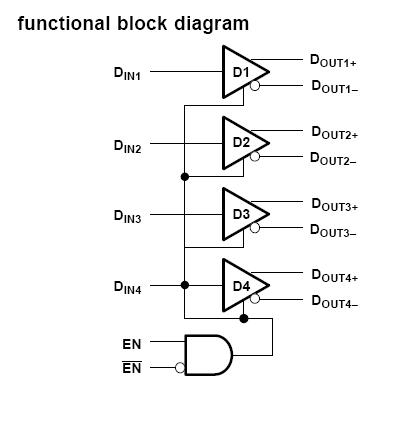

The SN65LVDS047PWR is a quad differential linedriver. The SN65LVDS047PWR implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5-V differential standard levels (such as EIA/TIA-422B) to reduce the power, increase the switching speeds, and allow operation with a 3.3V supply rail. Any of the four current-mode drivers will deliver a minimum differential output voltage magnitude of 247 mV into a 100-W load when enabled. The SN65LVDS047PWR is characterized for operation from -40℃ to 85℃.

Parametrics

SN65LVDS047PWR absolute maximum ratings: (1)(VCC) Supply voltage: -0.3 V to 4 V; (2)VI(DIN) Input voltage range: -0.3 V to (VCC +0.3 V); (3)(EN, EN ) Enable input voltage: -0.3 V to (VCC +0.3 V); (4)VO(DOUT+,DOUT-) Output voltage: -0.5 V to (VCC +0.5 V); (5)(DOUT+,DOUT-) Bus-pin--electrostatic discharge, see (3): ＞10 kV; (6)(DOUT+,(DOUT-) Short circuit duration: Continuous; (7)Storage temperature range: -65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

SN65LVDS047PWR features: (1)＞400 Mbps (200 MHz) Signaling Rates; (2)Flow-Through Pin-out Simplifies PCB Layout; (3)300ps Maximum Differential Skew; (4)Propagation Delay Times 1.8 ns (Typical); (5)3.3 V Power Supply Design; (6)±350 mV Differential Signaling; (7)High Impedance on LVDS Outputs on Power Down; (8)Conforms to TIA/EIA-644 LVDS Standard; (9)Industrial Operating Temperature Range (-40℃ to 85℃); (10) Available in SOIC and TSSOP Packages.
