Product Summary

The SN65LBC184D is a differential data line transceiver in the trade-standard footprint of the SN75176 with built-in protection against high-energy noise transients. This feature provides a substantial increase in reliability for better immunity to noise transients coupled to the data cable over most existing devices. Use of these circuits provides a reliable low-cost direct-coupled (with no isolation transformer) data line interface without requiring any external components. The SN65LBC184D can withstand overvoltage transients of 400-W peak (typical). The conventional combination wave called out in IEC 61000-4-5 simulates the overvoltage transient and models a unidirectional surge caused by over voltages from switching and secondary lightning transients. The applications of the SN65LBC184D include Industrial Networks, Utility Meters and Motor Control.

Parametrics

SN65LBC184D absolute maximum ratings: (1)Supply voltage: -0.5 V to 7 V; (2)Continuous voltage range at any bus terminal: -15 V to 15 V; (3)Data input/output voltage: -0.3 V to 7 V; (4)Receiver output current: ±20 mA; (5)Electrostatic discharge: 30 kV; (6)Continuous total power dissipation: Internally Limited.

Features

SN65LBC184D features: (1)Integrated Transient Voltage Suppression; (2)Circuit Damage Protection of 400-W Peak (Typical) Per IEC 61000-4-5; (3)Controlled Driver Output-Voltage Slew Rates Allow Longer Cable Stub Lengths; (4)250-kbps in Electrically Noisy Environments; (5)Open-Circuit Fail-Safe Receiver Design; (6)1/4 Unit Load Allows for 128 Devices Connected on Bus; (7)Thermal Shutdown Protection; (8)Power-Up/-Down Glitch Protection; (9)Each Transceiver Meets or Exceeds the Requirements of TIA/EIA-485 (RS-485) and ISO/IEC 8482:1993(E) Standards; (10)Low Disabled Supply Current 300 μA Max; (11)Pin Compatible With SN75176.

Diagrams

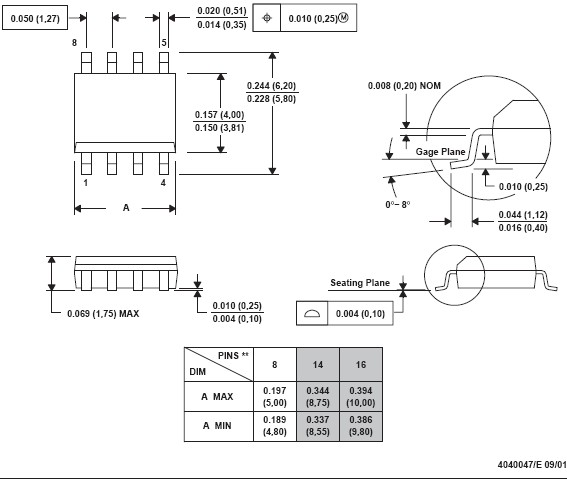

SN65LBC184D dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN65LBC184D
SN65LBC184D
Texas Instruments
Buffers & Line Drivers Trans Volt Spprssn Diff Transceiver
Data Sheet
0-1: $2.29
1-25: $2.09
25-100: $1.67
100-250: $1.45
SN65LBC184DG4
SN65LBC184DG4
Texas Instruments
Bus Transceivers Trans Volt Spprssn Diff Transceiver
Data Sheet
0-1: $2.29
1-25: $1.91
25-100: $1.67
100-250: $1.45
SN65LBC184DR
SN65LBC184DR
Texas Instruments
Buffers & Line Drivers Trans Volt Spprssn Diff Transceiver
Data Sheet
0-1: $2.03
1-25: $1.66
25-100: $1.60
100-250: $1.44
SN65LBC184DRG4
SN65LBC184DRG4
Texas Instruments
Bus Transceivers Trans Volt Spprssn Diff Transceiver
Data Sheet
0-1960: $1.00
1960-2500: $1.00
2500-5000: $0.97
