SN65HVD3086ED

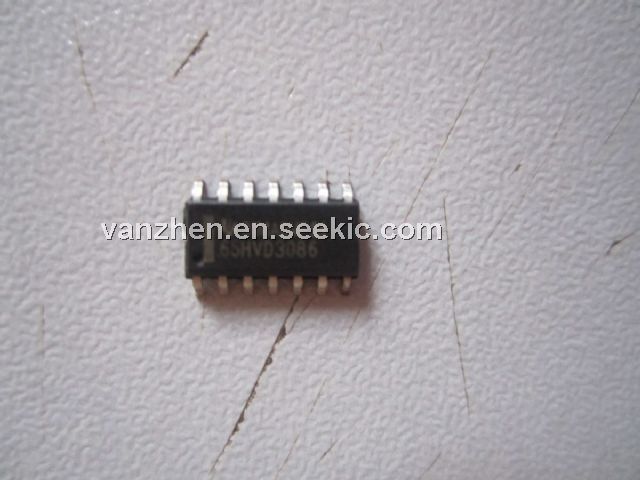

IC SN65HVD3086ED, low-power RS-485 full-duplex drivers/receiver, SOIC, -0.3 V to 7 V, 375 mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.80 / Piece
1000 ~ 10000 :	0.75 / Piece
10000 ~ 10000 :	0.65 / Piece

PartNumber:: SN65HVD3086ED

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-14

From Other Seller

Part Number:SN65HVD3086ED
US $0.65 - 0.80
Quantity:

piece

Product Summary

The SN65HVD3086ED is a balanced driver and receiver designed for full-duplex RS-485 or RS-422 data bus networks. Powered by a 5-V supply, they are fully compliant with the TIA/EIA-485A standard. With controlled bus output transition times, the devices are suitable for signaling rates from 200 kbps to 20 Mbps. The SN65HVD3086ED is designed to operate with a low supply current, less than 1 mA (typical), exclusive of the load. When in the inactive shutdown mode, the supply current drops to a few nanoamps, making these devices ideal for power-sensitive applications. The applications of the SN65HVD3086ED include Motion Controllers SN65HVD3080E 200 kbps, Point-of-Sale (POS) Terminals SN65HVD3083E 1 Mbps, Rack-to-Rack Communications SN65HVD3086E 20 Mbps, Industrial Networks, Power Inverters, Battery-Powered Applications, Building Automation.

Parametrics

SN65HVD3086ED absolute maximum ratings: (1)VCC, Supply voltage range: -0.3 V to 7 V; (2)V(A), V(B), V(Y), V(Z), Voltage range at any bus terminal (A, B, Y, Z): -9 V to 14 V; (3)V(TRANS), Voltage input, transient pulse through 100Ω(A, B, Y, Z): -50 to 50 V; (4)VI, Input voltage range (D, DE, RE): -0.3 V to VCC+0.3 V; (5)PD, Continuous total power dissipation: See the dissipation rating table; (6)TJ, Junction temperature: 170℃.

Features

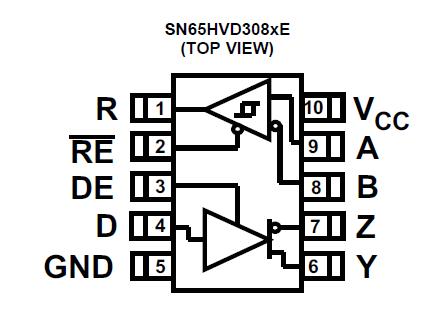

SN65HVD3086ED features: (1)Low Quiescent Power (TOP VIEW), 375 mA (Typical) Enabled Mode; 2 nA (Typical) Shutdown Mode; (2)Small MSOP Package; (3)1/8 Unit-Load—Up to 256 Nodes per Bus; (4)16 kV Bus-Pin ESD Protection, 6 kV All Pins; (5)Failsafe Receiver (Bus Open, Short, Idle); (6)TIA/EIA-485A Standard Compliant; (7)RS-422 Compatible.
