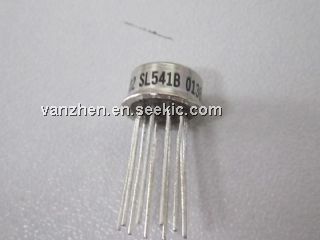

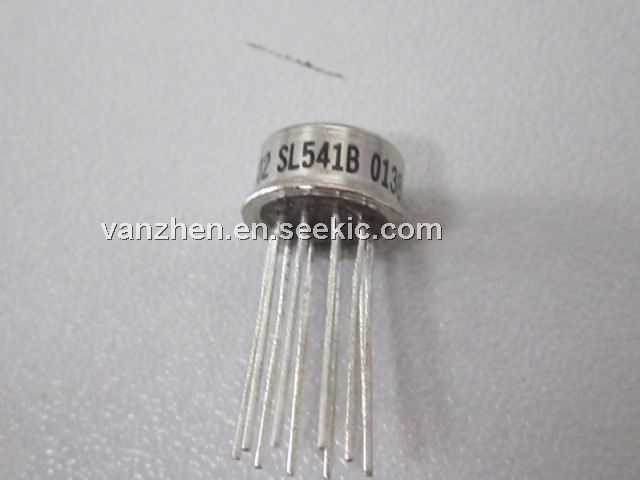

Product Summary

The SL541B is a monolitic amplifier designed for optimum pulse response and applications requiring high slew rate with fast setting time to high accuracy. The high open loop gain is stable with temperature, allowing the desired closed loop gain to be achieved using standard operational amplifier techniques. The SL541B has been designed for optimum response at a gain of 20dB when no compensation is required. The applications of the SL541B include wideband IF amplification, wideband video amplifiaction, fast setting pulse amplifiers, and high speed integrators.

Parametrics

SL541B absolute maximum ratings: (1)Supply voltage: 24V; (2)Input Voltage: ±9V; (3)Storage temperature: -55 to 150℃; (4)Chip operating temperature: 150℃.

Features

SL541B features: (1)high slew rate 175V/us; (2)Fast setting time 1% in 50ns; (3)Open loop gain 70dB; (4)Wide bandwidth DC to 100MHz at 10dB gain; (5)Guaranteed 5mV input offset maximum.

Diagrams

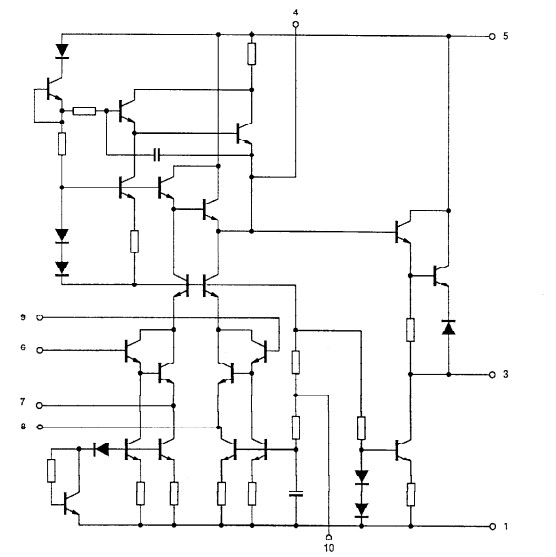

SL541B block diagram
