Product Summary

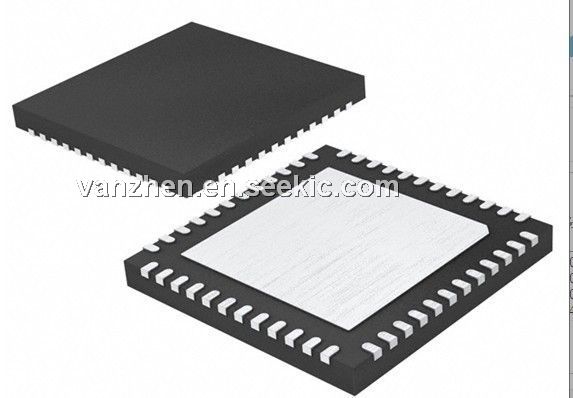

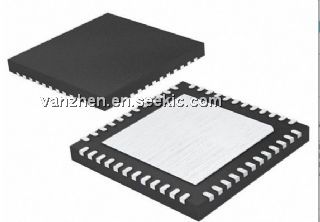

The SII9187BCNU is a PinnaClear Port Processor. The SII9187BCNU is a new generation of highly innovative yet cost-effective HDMI solutions for price-sensitive, mid-range DTVs. PinnaClear port processors output directly to the integrated HDMI inputs in DTV SoCs, allowing manufacturers to differentiate their products by focusing their R&D efforts on video processing or other proprietary advantages. The applications of the SII9187BCNU include LCD, plasma and projection DTVs.
Features
SII9187BCNU features: (1)Four HDMI 1.3 input ports; (2)Built-in HDCP decryption engines; (3)Five EDID RAMs for HDMI & VGA ports; (4)Integrated CEC; (5)Integrated NVRAM stores EDID data; (6)Single 3.3V power supply; (7)Built-in adaptive equalizer provides long cable support.

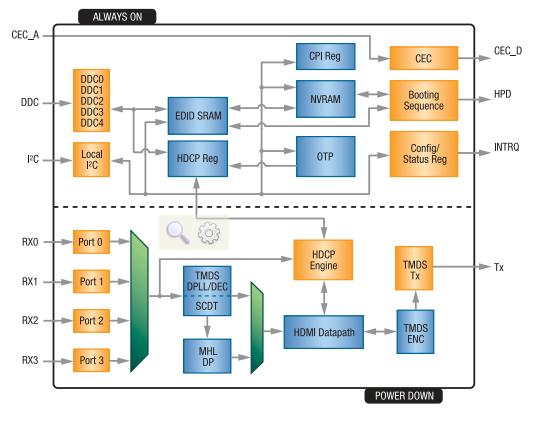

Diagrams
