Product Summary
The SII9013CLU is a low-cost, fully HDMI-compliant receiver. The SII9013CLU fits directly into home theater products such as LCD TVs, plasma TVs and HDTVs. The SII9013CLU is capable of supporting bandwidths up to 165MHz and video resolutions up to 1080p and UXGA. To improve manufacturers’ time-to-market and reduce design time, the SII9013CLU is software backward-compatible with the SiI 9021, SiI 9031 and SiI 9993. The SII9013CLU supports the DVD-Audio standard, including 7.1- surround audio at 96kHz and stereo audio at 192kHz. The SII9013CLU also supports HDCP Repeater functionality for applications such as media receiver set-top boxes and A/V receivers. The applications of the SII9013CLU include LCD TVs, Plasma TVs, HDTVs, A/V Receivers, Media Receiver, Set-Top Boxes.
Features
SII9013CLU features: (1)Industry-Standard Compliance: HDMI 1.1; (2)Digital Video Output: Integrated PanelLink core; (3)Digital Audio Output: Industry-standard S/PDIF and 3-wire output; (4)Content Protection: Integrated HDCP cipher engine; (5)System Operation: Register-programmable via slave I2C interface; (6)Power Management: 1.8V core provides low-power operation.

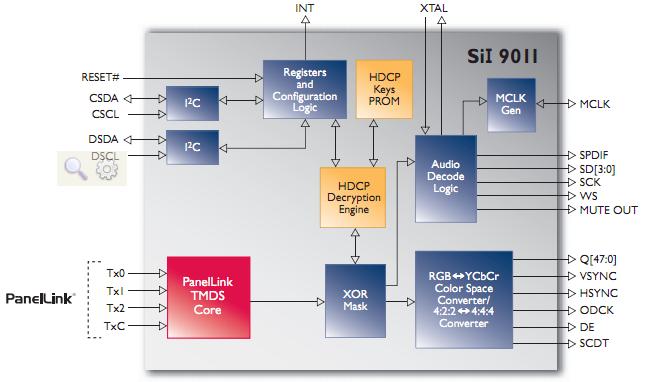

Diagrams
