Product Summary
The SI4826-A10-CUR is an N-Channel FET Synchronous Buck Regulator Controller. The SI4826-A10-CUR is intended to control currents of 0.7A to 20A with up to 95% conversion efficiencies. The SI4826-A10-CUR employs output over-voltage and under-voltage latch-off. For applications where latch-off is not desired, the SI4826-A10-CUR can be used. Power up and down sequencing is achieved with the power-good flag, adjustable soft-start and output enable features. The SI4826-A10-CUR operates from a low-current 5V bias and can convert from a 2.2V to 16V power rail. The applications of the SI4826-A10-CUR include Cable Modems, Set-Top Boxes/ Home Gateways, DDR Core Power, High-Efficiency Distributed Power, Local Regulation of Core Power.
Parametrics
SI4826-A10-CUR absolute maximum ratings: (1)VCC: 7V; (2)BOOTV: 21V; (3)Junction Temperature: 150 ℃; (4)Storage Temperature: -65 to 150 ℃; (5)Lead Temperature (soldering, 10sec): 260 ℃; (6)Infrared or Convection (20sec): 235 ℃; (7)ESD Rating(3): 2 kV.
Features
SI4826-A10-CUR features: (1)Input Power from 2.2V to 16V; (2)Output Voltage Adjustable Down to 0.6V; (3)Power Good flag, Adjustable Soft-Start and Output Enable for Easy Power Sequencing; (4)Output Over-Voltage and Under-Voltage Latch-Off; (5)Output Over-Voltage and Under-Voltage Flag; (6)Reference Accuracy: 1.5% (0 to 125 ℃); (7)Current Limit Without Sense Resistor; (8)Soft Start; (9)Switching Frequency from 50 kHz to 2 MHz; (10)TSSOP-14 Package.

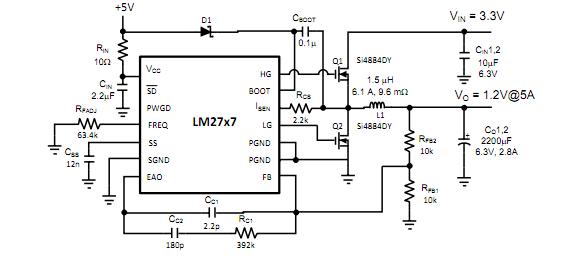

Diagrams
