Product Summary

The SC74HC595D is an 8bit shift register. The pin configuration is in accord with the 54LS/74LS series, and the operating speed is similar to 54LS/74LS. This circuit has the protecting circuit for all the inputs and outputs to avoid the damage caused by the static discharge. And it has the ability of driving load and features high noise immunity. The SC74HC595D application: LED screen.

Parametrics

SC74HC595D absolute maximum ratings: (1)Power Supply Voltage VCC: 2~6 V; (2)Input Voltage VIN: 0~VCC V; (3)Output Voltage VOUT: 0~VCC V; (4)Operating Temperature Topr: 40~+ 85 ℃.

Features

SC74HC595D features: (1)Wide operating voltage range 2~6V; (2)Low input current 1mA; (3)High output driving ability 15 LSTTL loads; (4)High operating speed(Typical)fmax=55MHz (VCC=5V); (5)Low supply current 80mA.

Diagrams

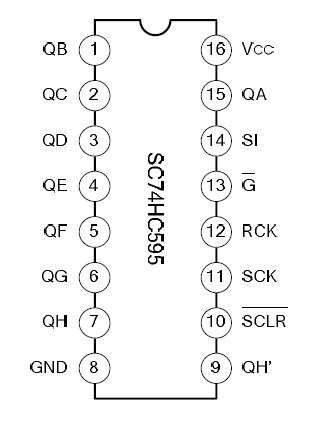

SC74HC595D pin connection
