Product Summary
The S29AL008J70TFI020 is a CMOS 3.0 Volt-only Boot Sector Flash Memory. The S29AL008J70TFI020 is organized as 1,048,576 bytes or 524,288 words. The S29AL008J70TFI020 is offered in 48-ball Fine-pitch BGA (0.8 mm pitch), and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The S29AL008J70TFI020 is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The S29AL008J70TFI020 can also be programmed in standard EPROM programmers.
Parametrics
S29AL008J70TFI020 absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65 to +150 ℃; (2)Ambient Temperature with Power Applied: –65 to +125 ℃; (3)Voltage with Respect to Ground: –0.5 V to +4.0 V; (4)Output Short Circuit Current (Note 3): 200 mA.
Features
S29AL008J70TFI020 features: (1)CFI (Common Flash Interface) Compliant; (2)Erase Suspend/Erase Resume; (3)Data# Polling and Toggle Bits; (4)Ready/Busy# Pin (RY/BY#); (5)Hardware Reset Pin (RESET#); (6)WP# input pin.

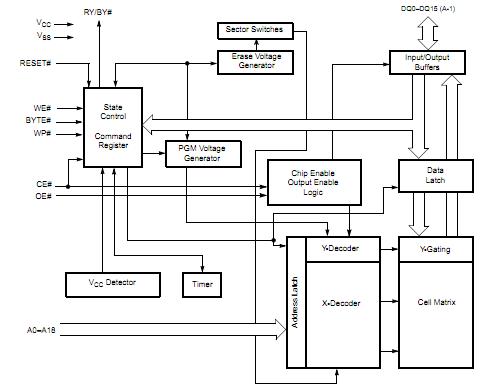

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 S29AL008J70TFI020 |
Spansion |
Flash 8M (1MX8/512KX16) 3V Bottom Boot Sect |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
S29AL004D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
S29AL008D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
S29AL008D55MFIR13 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
S29AL008D70TAI013 |
Spansion |
Flash 8MB CMOS 3.0V 70ns TOP SECTOR |
Data Sheet |
Negotiable |
|
||||||||||||
|
S29AL008J55BFIR10 |
Spansion |
Flash 8M (1MX8/512KX16) 3V Top Boot Sector |
Data Sheet |
|
|
||||||||||||
|
S29AL008J55BFIR20 |
Spansion |
Flash 8MB CMOS 3.0V 55ns BTM SECTOR PBF |
Data Sheet |
|
|
||||||||||||
