S25FL256SAGMFI001

S25FL256SAGMFI001, flash non-volatile memory, –0.5V to +4.0V, 100 mA, SOIC, SPANSION

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	4.00 / Piece
101 ~ 1000 :	3.00 / Piece
1001 ~ 10000 :	2.50 / Piece

PartNumber:: S25FL256SAGMFI001

Brand:: SPANSION - spansion | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-24

From Other Seller

Part Number:S25FL256SAGMFI001
US $2.50 - 4.00
Quantity:

piece

Product Summary

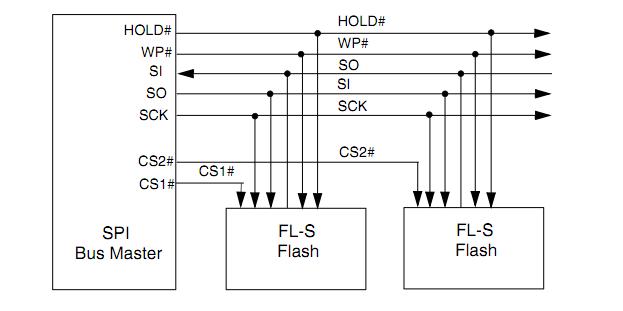

The S25FL256SAGMFI001 is a flash non-volatile memory product using: MirrorBit technology - that stores two data bits in each memory array transistor, Eclipse architecture - that dramatically improves program and erase performance, 65 nm process lithography. This family of the S25FL256SAGMFI001 connects to a host system via a Serial Peripheral Interface (SPI). Traditional SPI single bit serial input and output (SIngle I/O or SIO) is supported as well as optional two bit (Dual I/O or DIO) and four bit (Quad I/O or QIO) serial commands. This multiple width interface of the S25FL256SAGMFI001 is called SPI Multi-I/O or MIO. In addition, the FL-S family adds support for Double Data Rate (DDR) read commands for SIO, DIO, and QIO that transfer address and read data on both edges of the clock.

Parametrics

S25FL256SAGMFI001 absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65 to +150 ℃; (2)Ambient Temperature with Power Applied: –65 to +125 ℃; (3)VCC: –0.5V to +4.0V; (4)Input voltage with respect to Ground: –0.5V to +(Vio + 0.5V); (5)Output Short Circuit Current: 100 mA.

Features

S25FL256SAGMFI001 features: (1)Density; (2)Serial Peripheral Interface (SPI); (3)READ Commands; (4)Programming (1.5 Mbytes/s); (5)Erase (0.5 to 0.65 Mbytes/s); (6)Cycling Endurance; (7)Data Retention; (8)Security features; (9)Spansion 65 nm MirrorBit Technology with Eclipse Architecture; (10)Core Supply Voltage: 2.7V to 3.6V; (11)I/O Supply Voltage: 1.65V to 3.6V; (12)Temperature Range: Industrial (-40 to +85 ℃); (13)Packages (all Pb-free): 16-lead SOIC (300 mil).
