Product Summary
The S25FL128POXMFI000 is a 3.0 Volt (2.7 V to 3.6 V), single-power-supply Flash memory device. The S25FL128POXMFI000 consists of 64 sectors of 256 KB memory, or 256 sectors of 64 KB memory. The S25FL128POXMFI000 is accepts data written to SI (Serial Input) and outputs data on SO (Serial Output). The S25FL128POXMFI000 is designed to be programmed in-system with the standard system 3.0 volt VCC supply. The S25FL128POXMFI000 can be programmed 1 to 256 bytes at a time, using the Page Program command. The device supports Sector Erase and Bulk Erase commands.
Parametrics
S25FL128POXMFI000 absolute maximum ratings: (1)Ambient Storage Temperature: –65 to +150 ℃; (2)Voltage with Respect to Ground, All Inputs and I/Os: –0.5 V to VCC+0.5 V; (3)VCC, Supply Voltage: 2.7 to 3.6 V; (4)Active Read Current: 22 mA; (5)Active Page Program Current: 26 mA; (6)Active WRSR Current: 26 mA; (7)Active Sector Erase Current: 26 mA; (8)Active Bulk Erase Current: 26 mA; (9)Standby Current: 200 μA; (10)Deep Power Down Current: 320μA; (11)Input Low Voltage: –0.3 to 0.3 VCC V; (12)Input High Voltage: 0.7 VCC to VCC + 0.5 V; (13)Output Low Voltage: 0.4 V; (14)Output High Voltage: 0.6 V.
Features
S25FL128POXMFI000 features: (1)Memory Protection; (2)SPI Bus Compatible Serial Interface; (3)x8 Parallel Programming Mode.

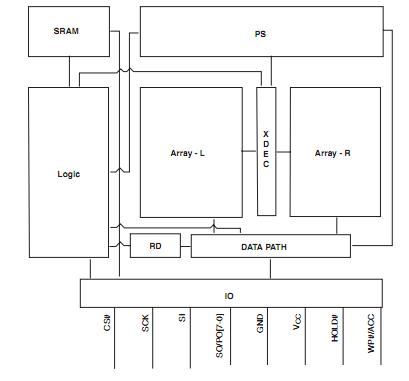

Diagrams
