Product Summary

The S25FL128P0XMFI001 is a 3.0 Volt (2.7 V to 3.6 V), single-power-supply Flash memory device. The S25FL128P0XMFI001 consists of 64 sectors of 256 KB memory, or 256 sectors of 64 KB memory. The S25FL128P0XMFI001 accepts data written to SI (Serial Input) and outputs data on SO (Serial Output). The S25FL128P0XMFI001 is designed to be programmed in-system with the standard system 3.0 volt VCC supply. The S25FL128P0XMFI001 can be programmed 1 to 256 bytes at a time, using the Page Program command. The device supports Sector Erase and Bulk Erase commands.

Parametrics

S25FL128P0XMFI001 absolute maximum ratings: (1)Ambient Storage Temperature: –65 to +150 ℃; (2)Voltage with Respect to Ground, All Inputs and I/Os: –0.5 V to VCC+0.5 V; (3)VCC, Supply Voltage: 2.7 to 3.6 V; (4)Active Read Current: 22 mA; (5)Active Page Program Current: 26 mA; (6)Active WRSR Current: 26 mA; (7)Active Sector Erase Current: 26 mA; (8)Active Bulk Erase Current: 26 mA; (9)Standby Current: 200 μA; (10)Deep Power Down Current: 320μA; (11)Input Low Voltage: –0.3 to 0.3 VCC V; (12)Input High Voltage: 0.7 VCC to VCC + 0.5 V; (13)Output Low Voltage: 0.4 V; (14)Output High Voltage: 0.6 V.

Features

S25FL128P0XMFI001 features: (1)Memory Protection; (2)SPI Bus Compatible Serial Interface; (3)x8 Parallel Programming Mode.

Diagrams

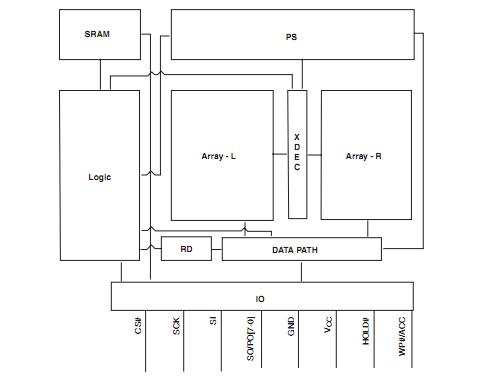

S25FL128P0XMFI001 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S25FL128P0XMFI001
S25FL128P0XMFI001
Spansion
Flash 3V 128Mb Mirrorbit 64 KB 104MHz
Data Sheet
0-188: $1.69
188-517: $1.61
517-1034: $1.56
