Product Summary
The S25FL064P is a 3.0 Volt (2.7V to 3.6V), single-power-supply flash memory device. The device consists
of 128 uniform 64 kB sectors with the two (Top or Bottom) 64 kB sectors further split up into thirty-two 4 kB
sub sectors. The S25FL064P device is fully backward compatible with the S25FL064A device.
Features
Architectural Advantages
? Single power supply operation
– Full voltage range: 2.7 to 3.6V read and write operations
? Memory architecture
– Uniform 64 kB sectors
– Top or bottom parameter block (Two 64-kB sectors (top or
bottom) broken down into sixteen 4-kB sub-sectors each)
– 256-byte page size
– Backward compatible with the S25FL064A device
? Program
– Page Program (up to 256 bytes) in 1.5 ms (typical)
– Program operations are on a page by page basis
– Accelerated programming mode via 9V W#/ACC pin
– Quad Page Programming
? Erase
– Bulk erase function
– Sector erase (SE) command (D8h) for 64 kB sectors
– Sub-sector erase (P4E) command (20h) for 4 kB sectors
– Sub-sector erase (P8E) command (40h) for 8 kB sectors
? Cycling endurance
– 100,000 cycles per sector typical

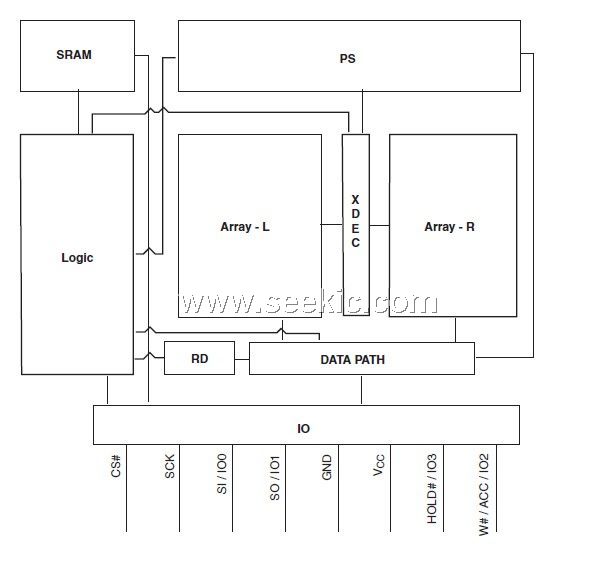

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

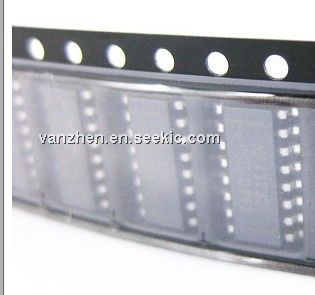

 S25FL064P0XMFI001 |
Spansion |
Flash 64M CMOS 3V 104MHz SPI Bus Interface |
Data Sheet |
|
|
||||||||||||
