Product Summary

The REF02AZ is a +5V precision voltage reference. The REF02AZ is a precision 5V voltage reference. The drift is laser trimmed to 10ppm/℃ max over the extended industrial and military temperature range. The REF02AZ provides a stable 5V output that can be externally adjusted over a ±6% range with minimal effect on temperature stability. The REF02AZ operates from a single supply with an input range of 8V to 40V with a very low current drain of 1mA, and excellent temperature stability due to an improved design.

Parametrics

REF02AZ absolute maximum ratings: (1)Input Voltage: +40V; (2)Operating Temperature: P, U: –40℃ to +85℃; (3)Storage Temperature Range P, U: –65℃ to +125; (4)Output Short Circuit Duration (to Ground or VIN): Indefinite; (5)Junction Temperature: –65℃ to +150℃; (6)θJA P: 120℃/W. U: 80℃/W; (7)Lead Temperature (soldering, 60s): +300℃.

Features

REF02AZ features: (1)Output voltage: +5V ±0.2% max; (2)Excellent temperature stability: 10ppm/℃ max (–40℃ to +85℃); (3)Low noise: 10μVPP max (0.1Hz to 10Hz); (4)Excellent line regulation: 0.01%/V max; (5)Excellent load regulation: 0.008%/mA max; (6)Low supply current: 1.4mA max; (7)Short-circuit protected wide supply range: 8V to 40V; (8)Industrial temperature range: –40℃ to +85℃; (9)Package options: DIP-8, SO-8.

Diagrams

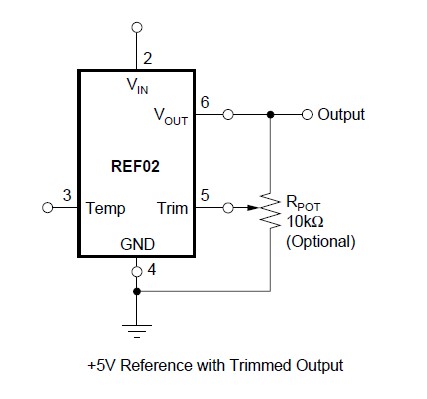

REF02AZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
REF02AZ
REF02AZ

IC VREF SERIES PREC 5V 8-CERDIP
Data Sheet
0-1: $21.73
1-10: $20.32
10-100: $17.62
100-250: $16.44
250-500: $15.66
REF02AZ/883B
REF02AZ/883B
Maxim Integrated Products
Voltage & Current References
Data Sheet
Negotiable
REF02AZ-G107
REF02AZ-G107
Maxim Integrated Products
Voltage & Current References
Data Sheet
Negotiable
