REF02AZ/883

REF02AZ/883, +5V, precision voltage reference, SOIC, 40V, 10uVpp, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $30.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	50.00 / Piece
11 ~ 100 :	40.00 / Piece
101 ~ 1000 :	30.00 / Piece

PartNumber:: REF02AZ/883

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-30

From Other Seller

Part Number:REF02AZ/883
US $30.00 - 50.00
Quantity:

piece

Product Summary

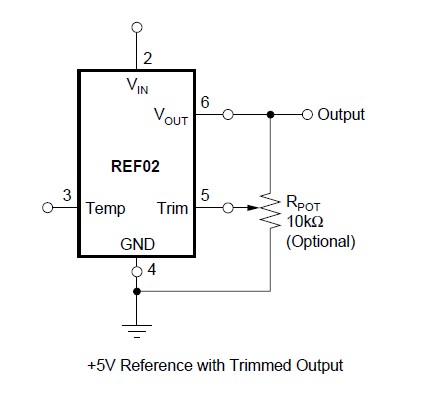

The REF02AZ/883 is a +5V precision voltage reference. The REF02AZ/883 is a precision 5V voltage reference. The drift is laser trimmed to 10ppm/℃ max over the extended industrial and military temperature range. The REF02AZ/883 provides a stable 5V output that can be externally adjusted over a ±6% range with minimal effect on temperature stability. The REF02AZ/883 operates from a single supply with an input range of 8V to 40V with a very low current drain of 1mA, and excellent temperature stability due to an improved design.

Parametrics

REF02AZ/883 absolute maximum ratings: (1)Input Voltage: +40V; (2)Operating Temperature: P, U: –40℃ to +85℃; (3)Storage Temperature Range P, U: –65℃ to +125; (4)Output Short Circuit Duration (to Ground or VIN): Indefinite; (5)Junction Temperature: –65℃ to +150℃; (6)θJA P: 120℃/W. U: 80℃/W; (7)Lead Temperature (soldering, 60s): +300℃.

Features

REF02AZ/883 features: (1)Output voltage: +5V ±0.2% max; (2)Excellent temperature stability: 10ppm/℃ max (–40℃ to +85℃); (3)Low noise: 10μVPP max (0.1Hz to 10Hz); (4)Excellent line regulation: 0.01%/V max; (5)Excellent load regulation: 0.008%/mA max; (6)Low supply current: 1.4mA max; (7)Short-circuit protected wide supply range: 8V to 40V; (8)Industrial temperature range: –40℃ to +85℃; (9)Package options: DIP-8, SO-8.
