Product Summary
The REF01AZ is a Precision Voltage Reference. The REF01AZ provides a stable +10V output which can be adusted over a +3% range with minimal effect on temperature stability. Single-supply operating over an input voltage range of 12V to 40V, low current drain of 1mA, and excellent temperature stability are achieved with an improved bandgap design. Low cost, low noise and low power make the REF01AZ an excellent choice whenever a stable voltage reference is required. Applications of the REF01AZ include D/A and A/D converters, portable instrumentation, and digital voltmeters. Fully military temperature range devices with screening to MIL-STD-883 are avaliable.
Parametrics
REF01AZ absolute maximum ratings: (1)input voltage: 40V; (2)output short-circuit duration: indefinite; (3)storage temperature range: -65 to 150℃; (4)operating temperature range: -55 to 150℃; (5)junction temperature, Tj: -65 to 150℃; (6)lead temperature (soldering, 60sec): 300℃.
Features
REF01AZ features: (1)10 volt output: ±0.3% max; (2)adjustment range: ±3% min; (3)excellent temperature stability: 8.5ppm/℃ max; (4)low noise: 30μVp-p max; (5)low supply current: 1.4mA max; (6)wide input voltage range: 12 to 40V; (7)high load-driving capability: 20mA; (8)no external components; (9)short-circuit proof; (10)MIL-STD-883 screening available; (11)available in Die Form.

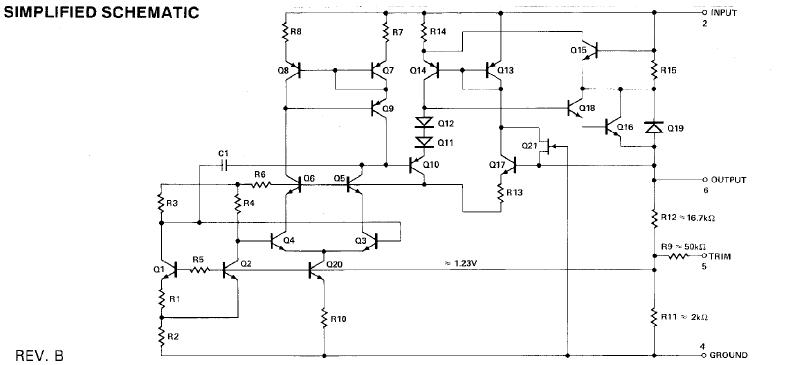

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 REF01AZ/883B |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||
 |
REF01AZ |
Analog Devices Inc |
IC PREC VOLT REFERENCE 10V 8CDIP |
Data Sheet |
Negotiable |
|
||||
