Product Summary

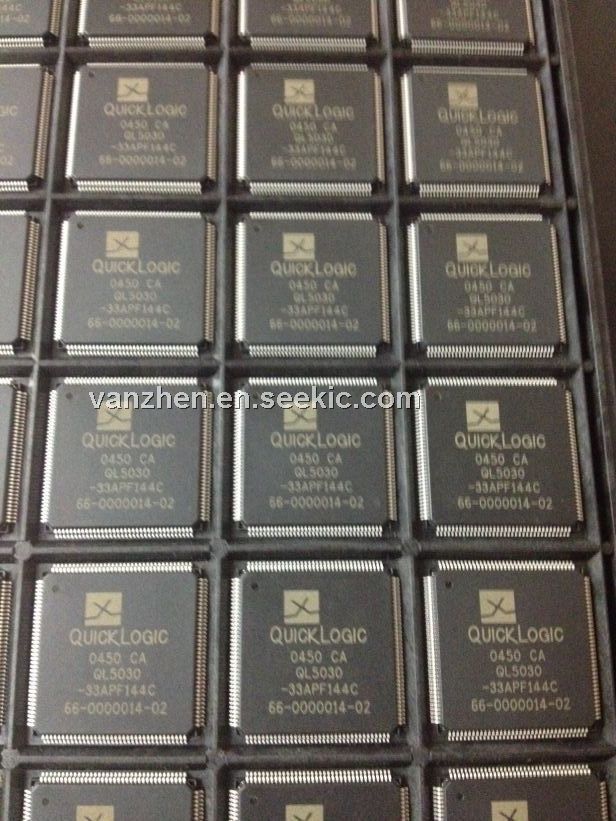

The QL5030 device in the QuickLogic QuickPCI ESP (Embedded Standard Product) family provides a
complete and customizable PCI interface solution combined with 24,000 system gates of programmable
logic. This device eliminates any need for the designer to worry about PCI bus compliance, yet allows
for the maximum 32-bit PCI bus bandwidth (132 MB/s).
The programmable logic portion of the device contains 266 QuickLogic Logic Cells, and 8 QuickLogic
Dual-Port RAM Blocks. These configurable RAM blocks can be configured in many width/depth
combinations. They can also be combined with logic cells to form FIFOs, or be initialized via Serial
EEPROM on power-up and used as ROMs. See the RAM section of this data sheet for more information.
The QL5030 device meets PCI 2.2 electrical and timing specifications and has been fully hardwaretested.
This device also supports the Win'98 and PC'98 standards. The QL5030 device features 3.3-volt
operation with multi-volt compatible I/Os. Thus it can easily operate in 3.3-volt systems and is fully
compatible with 3.3V, 5V or Universal PCI card development.
