Product Summary

The PMBT3906 is a PNP switching transistor. Its package is SOT23. It is suitable for Telephony and professional communication equipment.

Parametrics

PMBT3906 absolute maximum ratings: (1)VCBO, collector-base voltage: -40 V max; (2)VCEO, collector-emitter voltag: -40 V max; (3)VEBO, emitter-base voltage: -6 V max; (4)IC, collector current (DC): -100 mA max; (5)ICM, peak collector current: -200 mA max; (6)IBM, peak base current: -100 mA max; (7)Ptot, total power dissipation: 250 mW max; (8)Tstg, storage temperature: -65 to +150℃; (9)Tj, junction temperature: +150℃ max; (10)Tamb, operating ambient temperature: -65 to +150℃.

Features

PMBT3906 features: (1) low voltage; (2)low current.

Diagrams

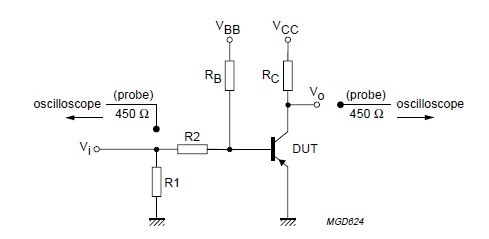

PMBT3906 block diagram
