Product Summary
The PM25LD512C-SCE is a 512Kbit Serial Peripheral Interface (SPI) Flash memory, providing single- or dual output. The PM25LD512C-SCE is designed to support a 33 MHz clock rate in normal read mode, and 100 MHz in fast read, the fastest in the industry. The devices use a single low voltage power supply, wide operating voltage ranging from 2.7 Volt to 3.6 Volt, to perform read, erase and program operations. The devices can be programmed in standard EPROM programmers. The PM25LD512C-SCE is accessed through a 4-wire SPI Interface consisting of Serial Data Input/Output (SlO), Serial Data Output (SO), Serial Clock (SCK), and Chip Enable (CE#) pins. They comply with all recognized command codes and operations. The dual-output fast read operation provides and effective serial data rate of 200MHz.
Parametrics
PM25LD512C-SCE absolute maximum ratings: (1)Temperature Under Bias: -65 to +125℃; (2)Storage Temperature: -65 to +125℃; (3)Standard Package: 240℃ 3 Seconds; (4)Surface Mount Lead Soldering Temperature Lead-free Package: 260℃ 3 Seconds; (5)Input Voltage with Respect to Ground on All Pins (2): -0.5 V to VCC + 0.5 V; (6)All Output Voltage with Respect to Ground: -0.5 V to VCC + 0.5 V; (7)VCC (2): -0.5 V to +6.0 V.
Features
PM25LD512C-SCE features: (1)Single Power Supply Operation; (2)Memory Organization; (3)Cost Effective Sector/Block Architecture; (4)Low standby current 1uA (Typ); (5)Serial Peripheral Interface (SPI) Compatible; (6)Page Program (up to 256 Bytes) Operation; (7)Sector, Block or Chip Erase Operation; (8)Low Power Consumption; (9)Hardware Write Protection; (10)Software Write Protection; (11)High Product Endurance; (12)Industrial Standard Pin-out and Package.

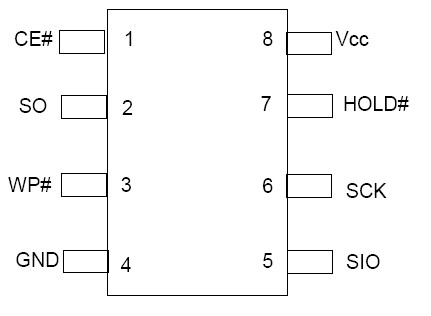

Diagrams
